SAATI LTS E70B Direct Laser Imaging & Exposure Unit

$64,995

Final pricing may vary by configuration, shipping, installation, training, applicable taxes, and manufacturer requirements.

Manufacturer SAATI Model E70B Equipment Type Darkroom Equipment Availability Available Immediately

Manufacturer Warranty Confirmed during quote

Financing Available with approval

Project Support Shipping, install and training

Product Information

Equipment Details

Equipment Details Manufacturer, model, configuration and availability

Manufacturer: SAATI
Model: E70B
Equipment Type: Darkroom Equipment
Availability: Available Immediately

Description & Features Product overview and primary equipment capabilities

About This Equipment

SAATI LTS E70B

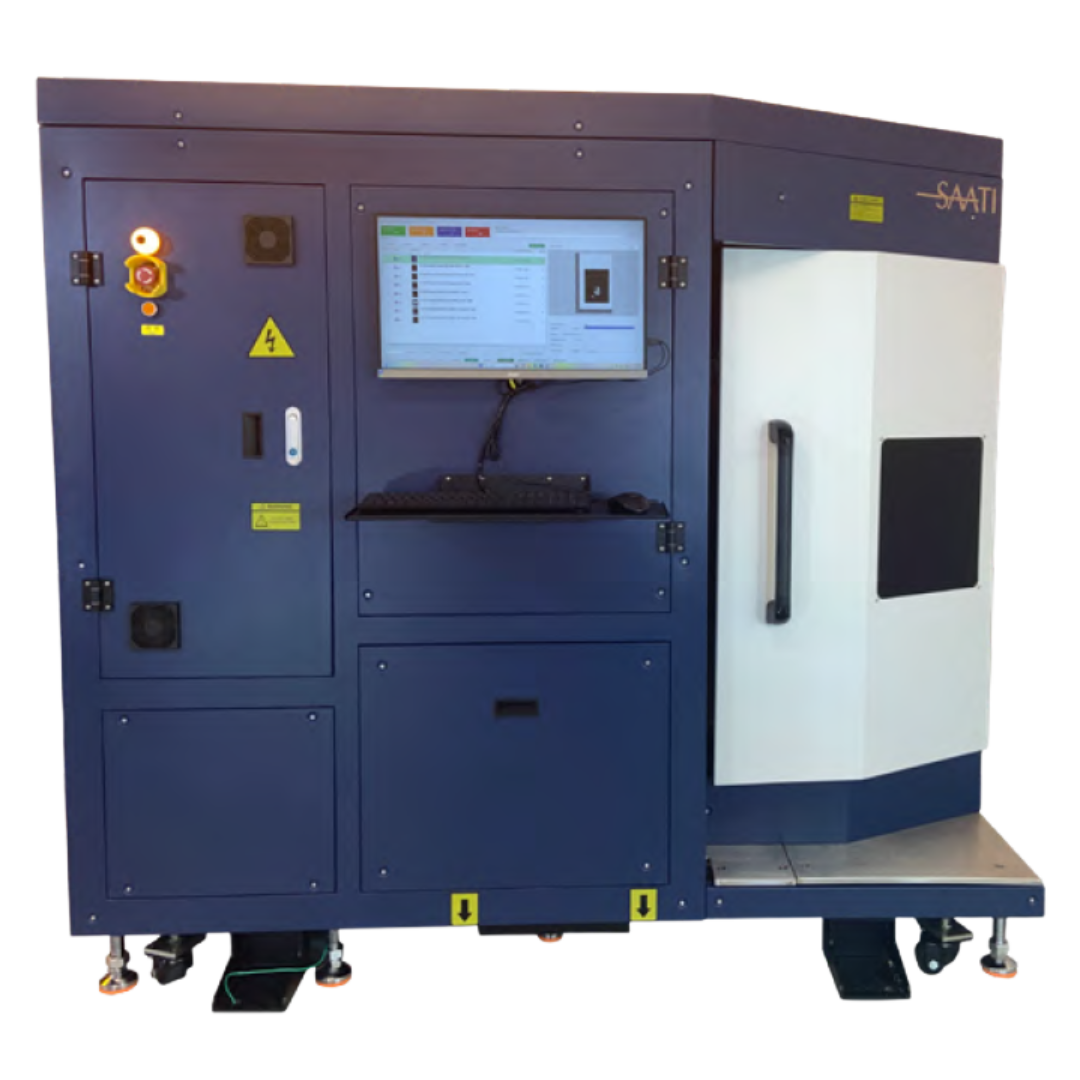

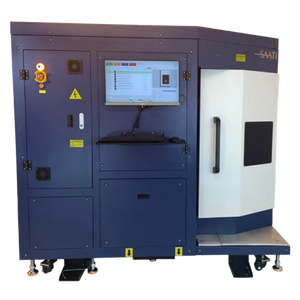

The SAATI LTS E70B is a self-contained, high-efficiency direct laser imaging and exposure unit built for precision and reliability in screen printing. With its vertical, glass-free design and integrated software, it eliminates the need for film positives or vacuum, offering a streamlined and cost-saving solution for modern print shops.

Screen Capacity: Designed to image and expose one screen up to 25" x 36" (640 x 920 mm), making it a strong fit for shops working with standard-size frames and consistent production needs.

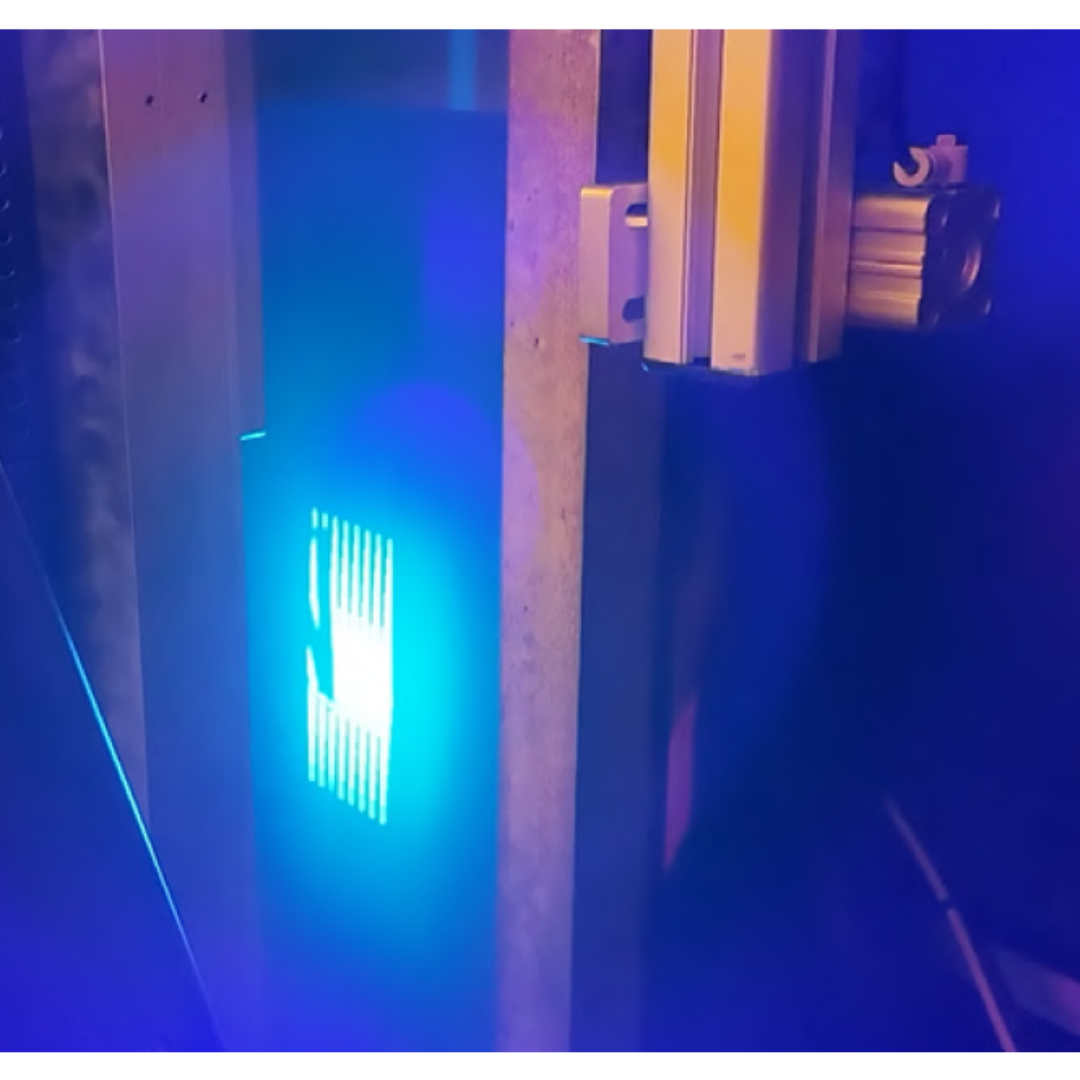

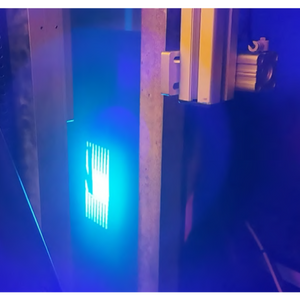

Resolution: Powered by a planar array of 64 lasers with resolution options of 1270 and 2540 DPI, it delivers sharp detail, high-definition images, and thorough curing of all emulsions and stencil films, including high-density applications.

Ease of Use: Operated via PC with user-friendly software, the unit supports optional RIP programs and processes 1-bit TIFF file formats, ensuring compatibility with a wide range of workflows.

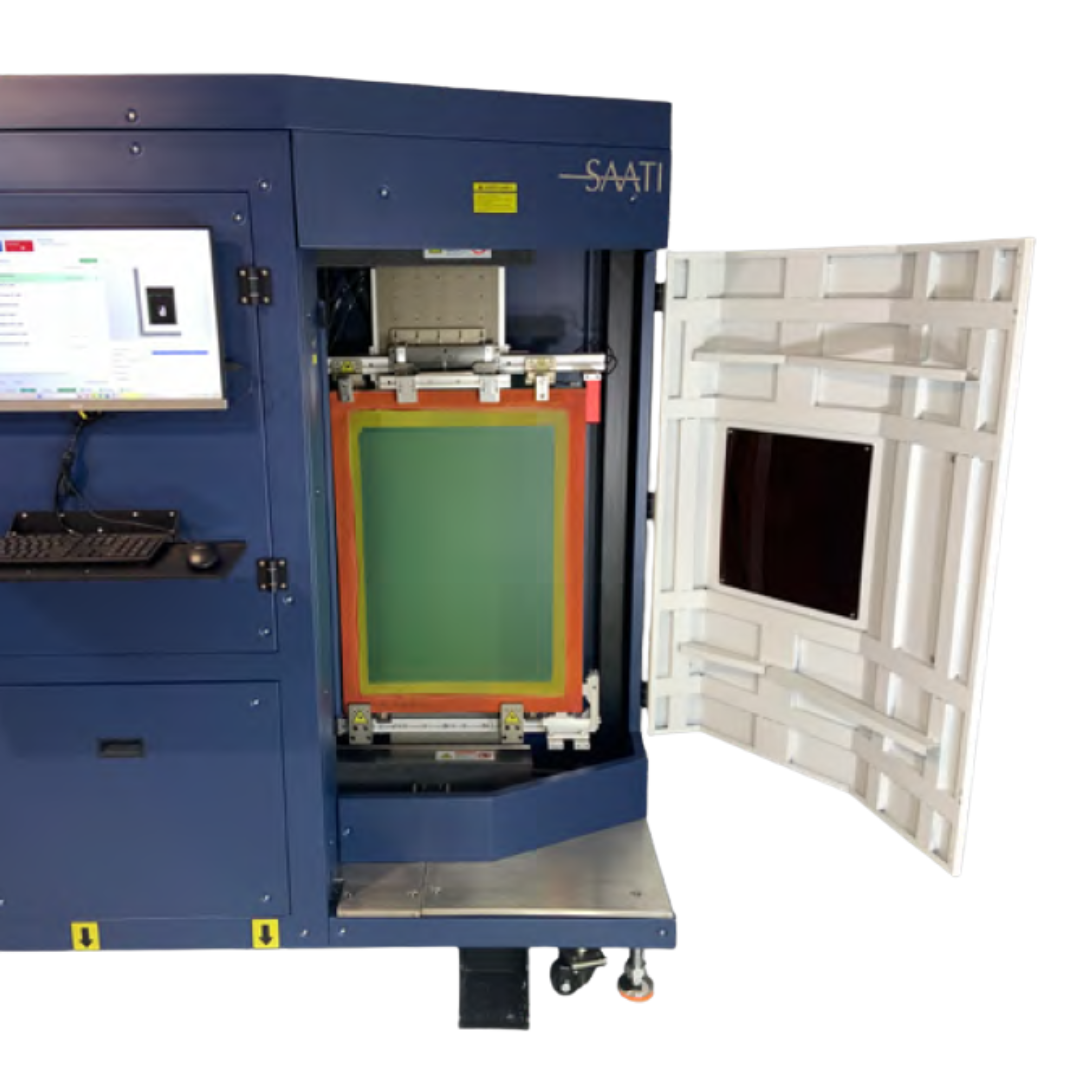

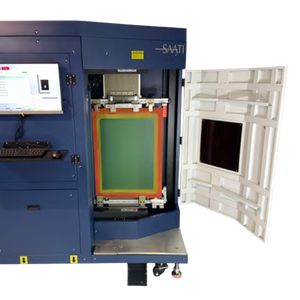

Performance & Efficiency: Features a pneumatic frame clamping system compatible with leading registration systems (MHM, Tri-Lock), upgraded drive and encoder systems for precise pixel placement, and low power consumption to reduce operational costs.

Durability: Built for long-term performance with a 10,000+ hour laser life, easy maintenance, and reliable exposure quality that enhances consistency across production runs.

The SAATI LTS E70B is an excellent choice for print shops seeking dependable, high-resolution computer-to-screen imaging in a compact vertical design. Balancing efficiency, precision, and cost-effectiveness, it’s a versatile solution for elevating daily production output while minimizing consumables and energy use.

Equipment Highlights

Image setter quality resolution from 1270 dpi to 2540 dpi
Laser technology via Planar array of 64 lasers
Very high resolution LTS exposure capable of reproducing the most demanding images
Exposes all emulsions and stencil films
Easy to use software, compatible with many RIP programs
No consumables and low power consumption for minimized costs
10,000+ hour laser life and easy, low cost maintenance.

Technical Specifications Electrical, air and facility requirements

Electrical Requirements: 110V or 220V
Air Supply: 1 CFM

Dimensions

Machine Dimensions: 2070 x 712 x 1880 mm | 81.5 x 28 x 74” - allow an additional 610 mm / 24” on the right side and 203.2 mm / 8” in front for the screen chamber door to fully open
Maximum Image Size: 600 x 800 mm | 23.6 x 31.4”
Maximum Frame Size: 640 x 920 mm | 25 x 36”
