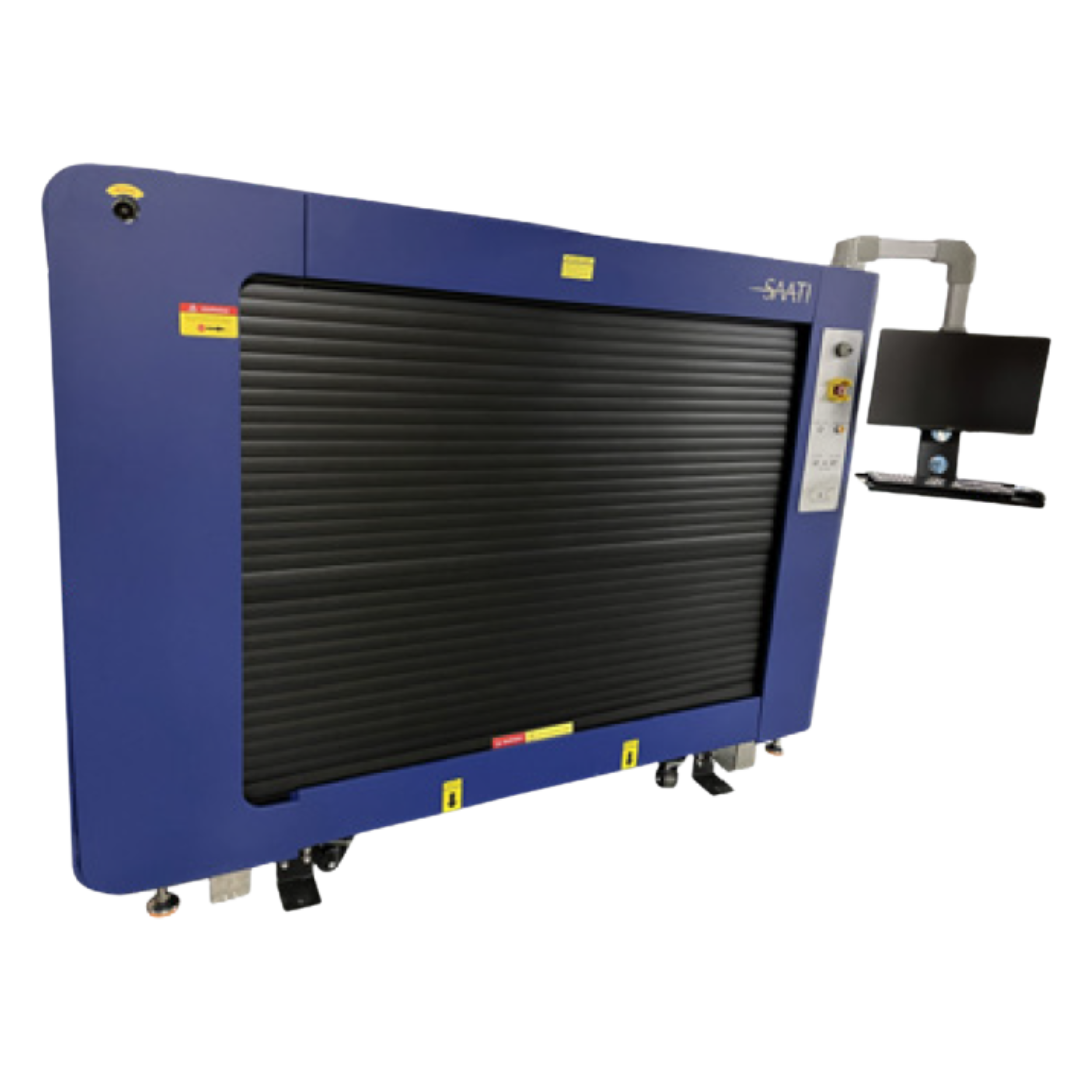

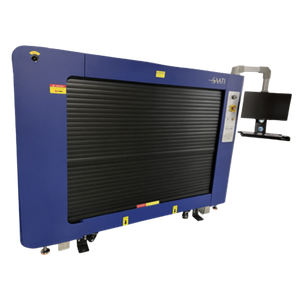

SAATI LTS 8012 HD Direct Laser Image & Exposure Unit

The SAATI LTS 8012 HD is a high-efficiency, precision-driven direct laser imaging and exposure unit, designed to streamline screen printing operations. With a vertical, glass-free design, it eliminates the need for vacuum or film positives,
making it a cost-effective and versatile solution for high-production shops.

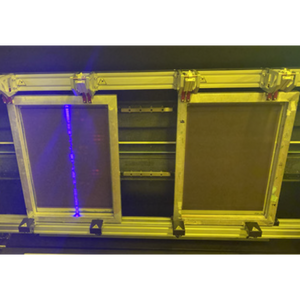

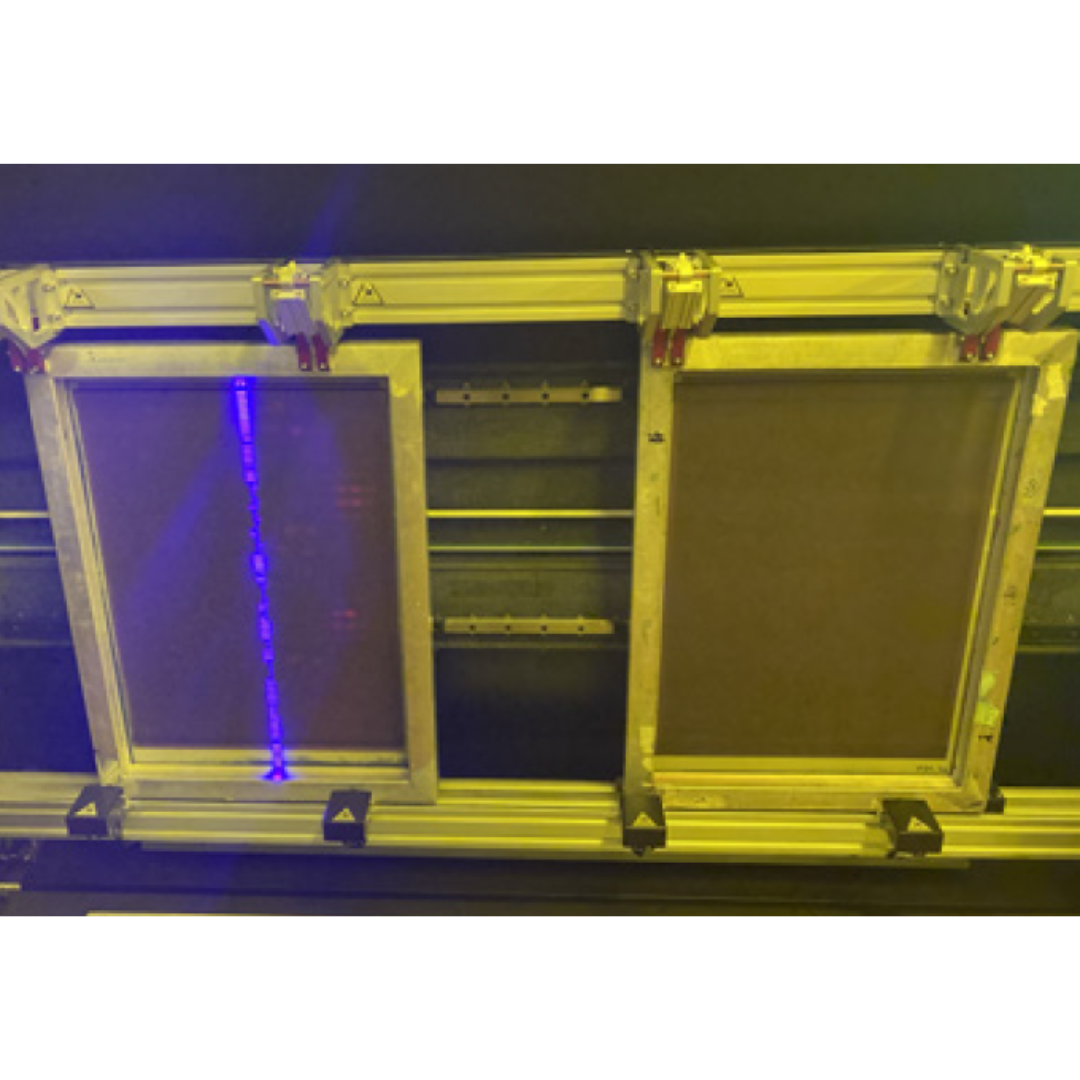

Screen Capacity

Holds one screen up to 41.3” x 63” or two screens up to 25” x 36” simultaneously, maximizing efficiency for both large-format and high-volume screen printing workflows.

Resolution

Featuring a 128-laser array with resolutions from 847 to 2540 DPI, the LTS 8012 HD delivers incredible detail, ideal for intricate designs, halftones, and high-precision graphics.

Exposed Emulsion Coverage

Designed for all emulsions and stencil films, it ensures optimal exposure with minimal waste, reducing the need for additional taping and increasing overall efficiency.

Ease of Use

Operated via PC with optional RIP software, it supports 1-bit TIFF file formats, ensuring seamless integration with existing workflows.

Energy Efficient & Cost-Effective

With low power consumption and a 10,000+ hour laser diode lifespan, the LTS 8012 HD minimizes operational costs while delivering consistent, high-quality imaging.

The SAATI LTS 8012 HD is the ultimate solution for screen printers requiring precision, high-speed imaging, and cost-efficiency. Elevate your production and streamline your workflow!

Key Equipment Highlights

SAATI LTS 8012 vs. LTS 8012 HD – Key Differences

The SAATI LTS 8012 HD builds upon the capabilities of the LTS 8012, offering advanced features for improved precision, consistency, and efficiency. Here’s how the two models compare:

✅ Higher Resolution – The LTS 8012 HD supports resolutions up to 5080 DPI, delivering finer detail and sharper imaging compared to the LTS 8012's maximum of 2540 DPI.

✅ Enhanced Frame Clamping – The HD model features individual frame clamp controls, allowing for more precise handling and registration when imaging multiple screens.

✅ System Upgrades for Precision – The LTS 8012 HD includes dual encoders and frame temperature sensors, improving image accuracy, consistency, and repeatability across every screen.

The LTS 8012 HD is the ideal choice for screen printers seeking the highest level of detail, accuracy, and efficiency, making it perfect for demanding, high-precision production environments.

02
Complete Equipment Information

Equipment Details

Configuration, technical specifications and facility requirements in one place.

Equipment
Manufacturer
Saati
Model
LTS 8012 HD
Equipment Type
Darkroom Equipment
Availability
Available Immediately
Production + Facility Requirements
Electrical Requirements
Compatible with 110V or 220V input
Air Supply
Requires compressed air for clamps (90 psi, less than 1 CFM)

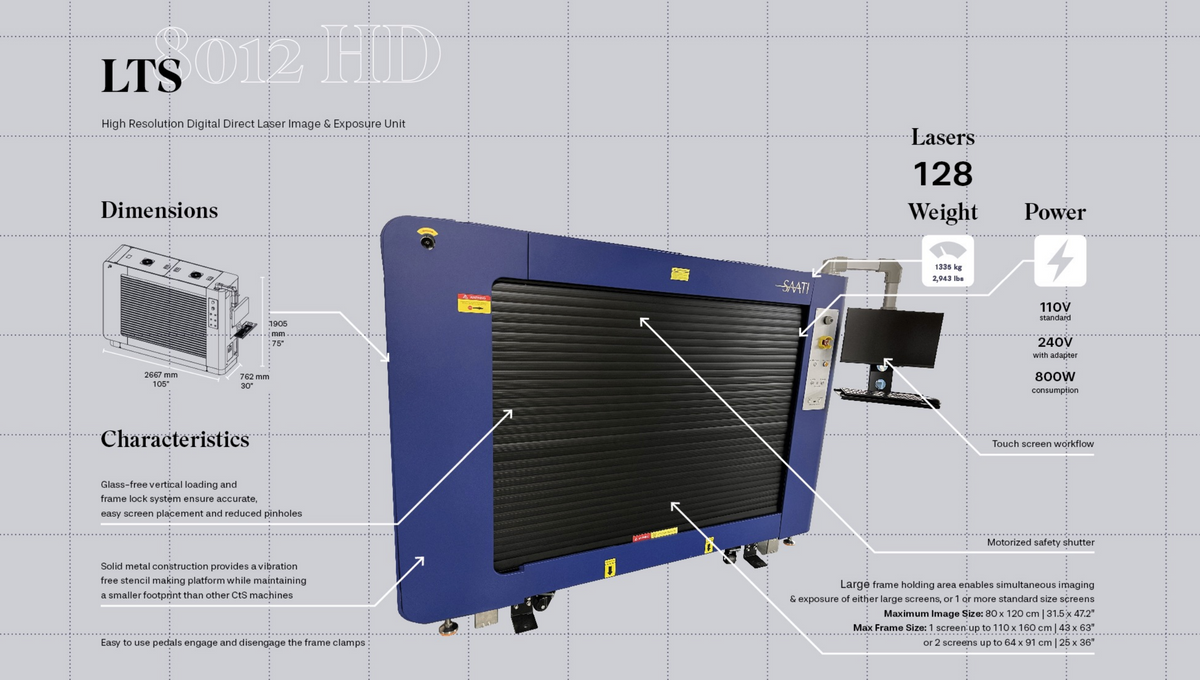

Dimensions

  • Machine Dimensions: 105 x 30 x 75”
  • Maximum Image Size: 47” x 31”
  • Maximum Frame Size: 63 x 43” or 2 screens up to 25 x 36”
  • Larger frame layouts are possible - contact us to learn more!
