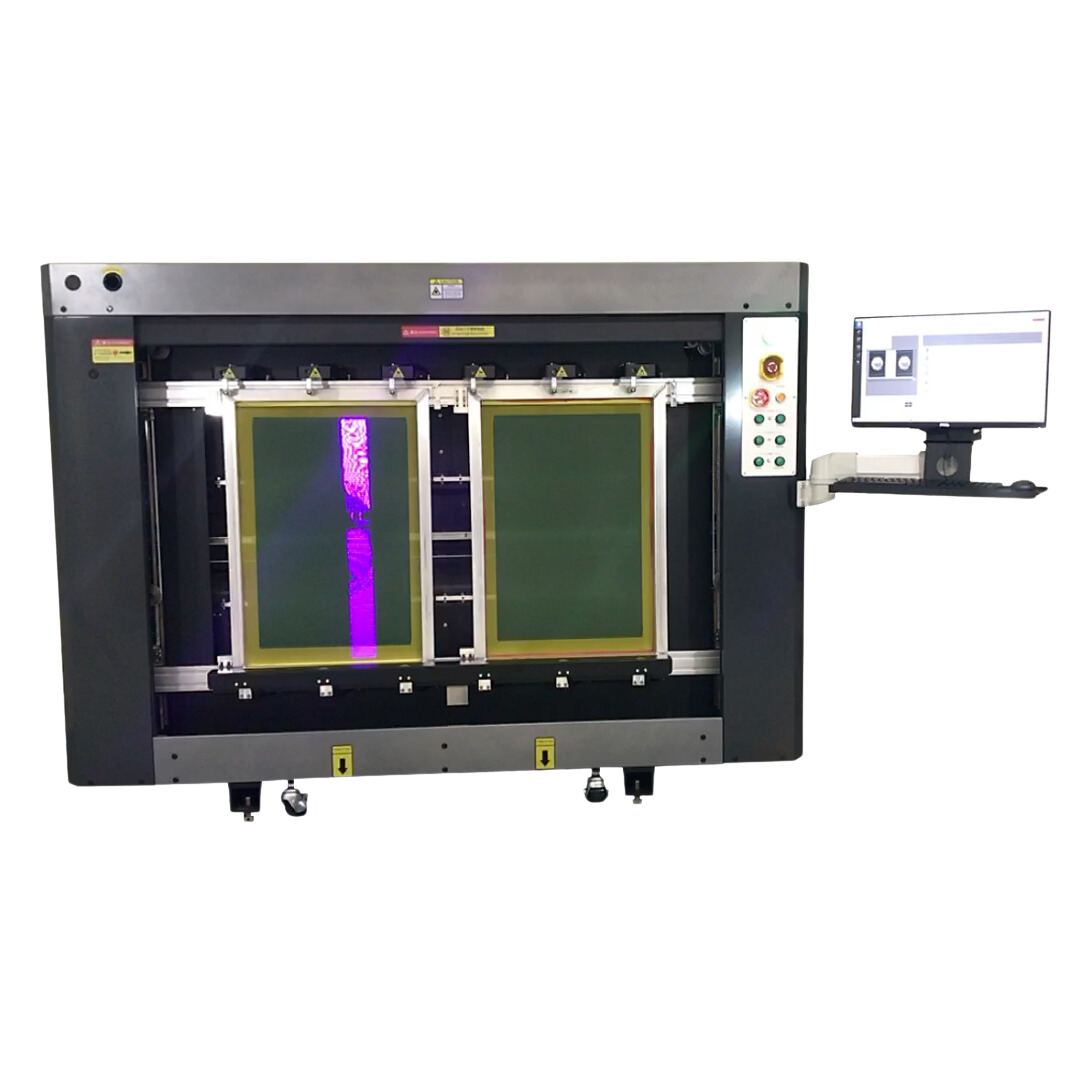

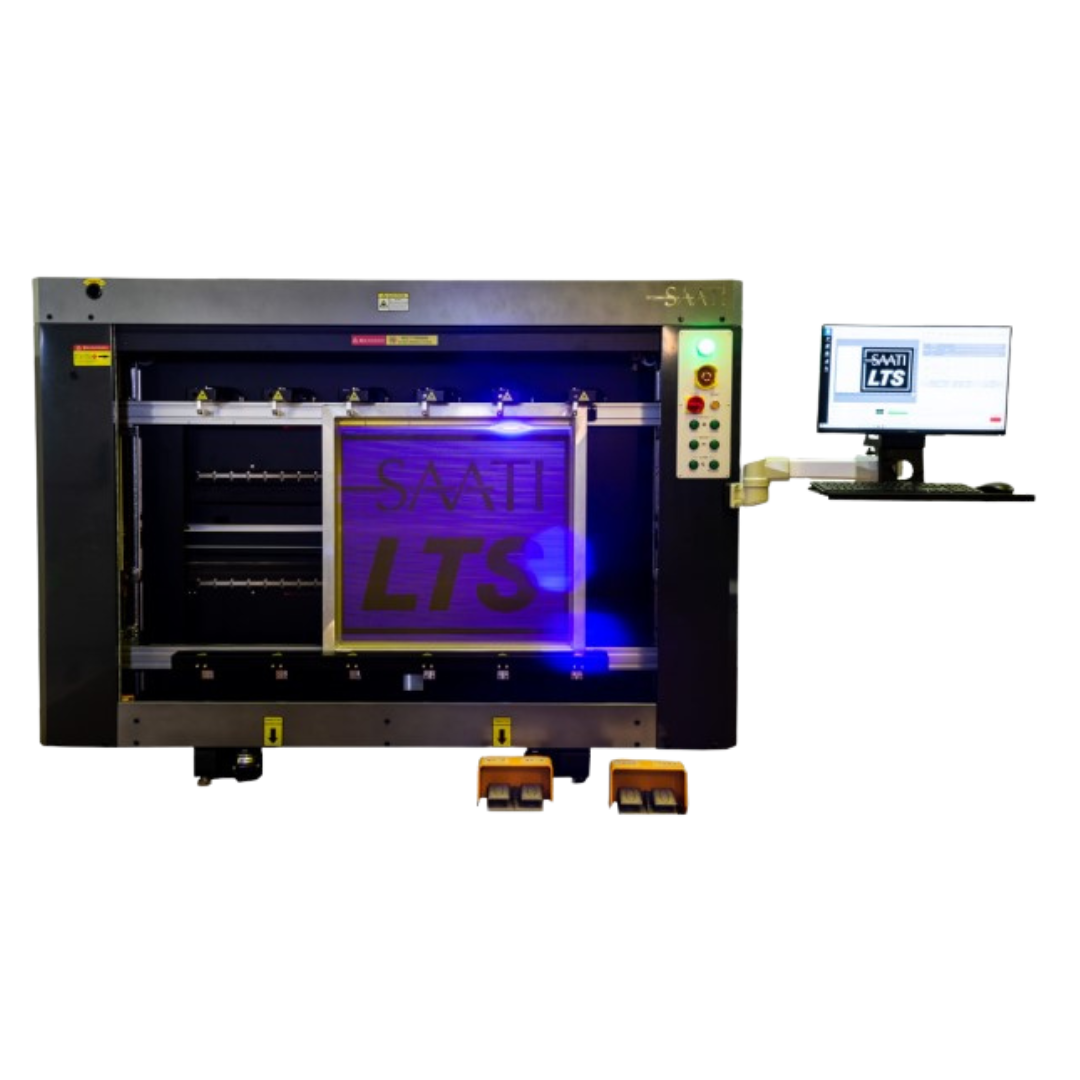

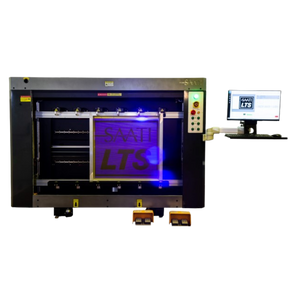

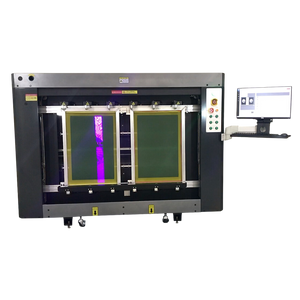

SAATI LTS 8012 Direct Laser Image & Exposure Unit

+ New Equipment

2 Media Manufacturer Product

Shop New Available Immediately

SAATI LTS 6012 Direct Laser Image & Exposure Unit

$85,995

Final pricing may vary by configuration, shipping, installation, training, applicable taxes, and manufacturer requirements.

Manufacturer SAATI Model LTS 6012 Equipment Type Darkroom Equipment Availability Available Immediately

Manufacturer Warranty Confirmed during quote

Financing Available with approval

Project Support Shipping, install and training

Product Information

Equipment Details

Equipment Details Manufacturer, model, configuration and availability

Manufacturer: SAATI
Model: LTS 6012
Equipment Type: Darkroom Equipment
Availability: Available Immediately

Description & Features Product overview and primary equipment capabilities

About This Equipment

SAATI LTS 6012

The SAATI LTS 6012 is a self-contained,
high-efficiency direct laser imaging and exposure unit designed to enhance
precision and streamline production. Its vertical, glassless design eliminates
the need for vacuum or film positives, making it a reliable choice for screen
printing operations.

Screen Capacity: Holds screens up to 41"
x 63" or two screens up to 23" x 31" simultaneously.

Resolution: Features a 96-laser
array with resolutions up to 2540 DPI, ideal for producing
sharp, detailed images for standard designs and most screen printing
applications.

Exposed Emulsion Height: Offers a maximum emulsion
height of 23.6 inches, which is well-suited for smaller designs.
Note: This leaves 2.2 inches of open mesh at both the top and
bottom of a standard 23" x 31" frame, which may require taping for
shops that rely on emulsion to block ink flow.

Ease of Use: Compatible with various RIP
programs and supports 1-bit TIFF file formats through its
intuitive software interface.

The SAATI LTS 6012 delivers reliable performance and detail
for emulsions and stencil films, making it an excellent solution for shops
focused on standard designs and efficient workflows. For shops
requiring larger emulsion coverage or handling intricate designs, the SAATI
8012 may offer additional benefits.

*Previously named: 6080-VF

Equipment Highlights

SAATI 6012 vs. 8012 LTS: Which One Fits Your Shop Best?

Choosing between the SAATI 6012 and 8012
LTS systems depends on your shop's specific needs, including design
size, precision, and production volume. Here's a detailed comparison to help
you decide:

Which Is Right for You?

Choose the 6012 if you primarily work
with smaller designs and don’t mind taping screens as needed.

Choose the 8012 if you require a larger
emulsion area or want to minimize taping and setup time for your screens.

Understanding your shop’s workflow and production
requirements can help you make the best decision.

1. Higher Resolution for Enhanced Detail

8012 Advantage: Equipped with a 128-laser
array and a resolution range of 847 to 5080 DPI, the 8012 delivers
sharper and more precise images.

6012 Specs: Features a 96-laser array
with a resolution range of 847 to 2540 DPI.

Best Fit: If your shop works with intricate designs, fine
halftones, or needs extreme detail, the 8012 is the better
option. The 6012 still offers excellent resolution for
standard screen printing jobs.

2. Larger and Dual Screen Capability

Screen Size: Both units can expose
screens up to 41" x 63".

Dual Exposure: The 8012 can
expose two screens (25" x 36") simultaneously, boosting
productivity for high-volume shops with smaller screens.

Best Fit: The dual capability of the 8012 is
ideal for shops that require faster turnover on smaller screens.

3. Best for Precision and High-Volume

8012 Advantage: Its superior resolution and
ability to expose multiple screens make it the better fit for shops handling
complex designs or operating in high-demand production settings.

6012 Fit: Best suited for shops focused on standard
designs or those with a lower emphasis on intricate details.

4. Exposed Emulsion Height

When considering the exposed emulsion height, think about how
it fits your frame size and workflow:

SAATI 6012 LTS

Exposed Emulsion Height: 23.6 inches.

Fits Screen Size: Works with a 23"
x 31" frame (inside frame height: 28 inches).

Open Mesh Area: Leaves 4.4 inches of
open mesh (2.2 inches at the top and bottom).

Considerations:

Shops that use exposed emulsion to block ink flow may need to tape screens due
to the larger open mesh area.Ideal for smaller designs that fit comfortably
within the 23.6-inch emulsion height.

SAATI 8012 LTS

Exposed Emulsion Height: 31.5 inches.

Fits Screen Size: Works with a 25"
x 36" frame (inside frame height: 33 inches).

Open Mesh Area: Leaves 1.5 inches of
open mesh (.75 inches at the top and bottom).

Considerations:

Provides a larger exposed emulsion area, reducing the need for additional
taping compared to the 6012.

A better option for shops requiring more emulsion coverage,
even with smaller frames.

All in All:

The 6012 is a reliable choice for shops with
standard screen printing needs and smaller designs.

The 8012 offers advanced resolution, larger
emulsion coverage, and higher productivity, making it the best option for shops
focused on precision and high-volume production.

Still unsure? Reach out to us, and
we’ll help you find the perfect fit for your shop!

Technical Specifications Electrical, air and facility requirements

Electrical Requirements: Compatible with 110V or 220V input

Dimensions

Machine Dimensions: 86.6 x 22.8 x 64”
Maximum Image Size: 60 x 120 cm | 23.5” x 47”
Maximum Frame Size: 1 screen up to 105 x 160 cm | 41.3 x 63”
or 2 screens up to 58 x 78 cm/23x31”
