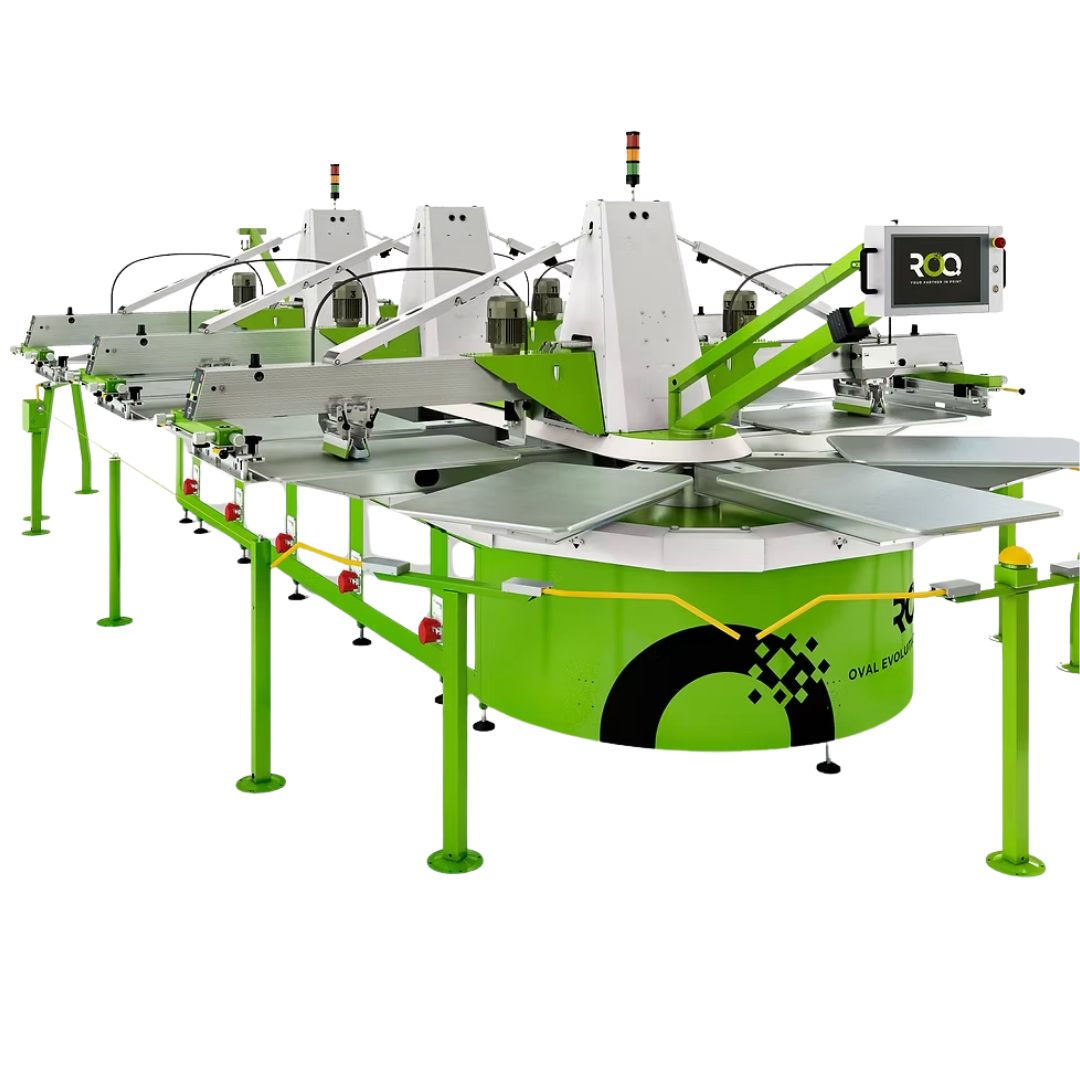

ROQ Oval Evo XL Automatic Press

The ROQ Oval Evolution is ROQ’s flagship automatic oval press, engineered for decorators who demand maximum performance, advanced automation, and unmatched versatility.

Designed for high-output production environments, the Oval Evolution delivers larger print capabilities, faster indexing, and enhanced operator control—while reducing maintenance and improving overall efficiency.

This system is built for shops scaling into industrial-level production or those looking to eliminate bottlenecks with a future-proof platform.

The ROQ Oval Evolution is available in multiple configurations to match your production needs, scalability goals, and shop layout.

– P16 Configuration: 10 Colors / 16 Stations / 10 Flash Positions

– P20 Configuration: 14 Colors / 20 Stations / 14 Flash Positions

– P24 Configuration: 18 Colors / 24 Stations / 18 Flash Positions

– P32 Configuration: 26 Colors / 32 Stations / 26 Flash Positions

– P36 Configuration: 30 Colors / 36 Stations / 30 Flash Positions

– P40 Configuration: 34 Colors / 40 Stations / 34 Flash Positions

– P44 Configuration: 38 Colors / 44 Stations / 38 Flash Positions

– P50 Configuration: 44 Colors / 50 Stations / 44 Flash Positions

– P56 Configuration: 50 Colors / 56 Stations / 50 Flash Positions

– Custom configurations available based on production goals and layout requirements.

• XL+ Models: 24" x 31.5" Print Area
• 2XL Models: 27.5" x 39.5" Print Area
• 3XL Models: 31.5" x 43.5" Print Area
• 4XL Models: 37.5" x 49.5" Print Area

• XL+ Maximum Frame Size: ~30" x 45" (760mm x 1150mm class frames)
• 2XL Maximum Frame Size: ~34" x 53" (860mm x 1350mm class frames)
• 3XL Maximum Frame Size: ~38" x 57" (960mm x 1450mm class frames)
• 4XL Maximum Frame Size: ~43.5" x 63" (1110mm x 1600mm class frames)

- Maximum Production Speed: Up to 950 pieces/hour

(Measured by total machine length based on pallet count)

XL+

– P16: 28.9'

– P20: 35.1'

– P24: 41.4'

– P32: 53.9'

– P36: 60.2'

– P40: 66.4'

– P44: 72.7'

– P50: 82.1'

– P56: 91.4'

2XL

– P16: 35.1'

– P20: 43.2'

– P24: 51.2'

– P32: 67.2'

– P36: 75.2'

– P40: 83.2'

– P44: 91.2'

– P50: 103.2'

– P56: 115.2'

3XL

– P16: 35.8'

– P20: 43.8'

– P24: 51.9'

– P32: 67.8'

– P36: 75.9'

– P40: 83.9'

– P44: 91.9'

– P50: 103.9'

– P56: 115.9'

4XL

– P16: 41.1'

– P20: 50.2'

– P24: 59.4'

– P32: 77.7'

– P36: 86.9'

– P40: 96.1'

– P44: 105.3'

– P50: 119.0'

– P56: 132.8'

– Footprint will vary slightly based on configuration, layout, and auxiliary equipment.

– Flagship-Level Performance
 ROQ’s most advanced oval platform, built for high-volume, high-efficiency production environments.
– Up to 950 Pieces Per Hour
 Increased production speed with precision indexing for maximum throughput.
– Large Format Printing Capabilities
 Supports XL, 2XL, 3XL, and 4XL pallet configurations for oversized and specialty prints.
– Advanced Automation & User-Friendly Controls
 Central touchscreen control system with intuitive interface and full machine control at your fingertips.
– Automatic Maintenance Features
 Designed with reduced maintenance requirements and automated systems to minimize downtime and operator intervention.
– Independent Printhead Control
 Full control of print and flood speeds, pressure, angle, and stroke length at each head for maximum print precision.
– High-Precision Indexing System
 AC motor with high-resolution encoder ensures consistent, accurate movement across all stations.
– Double Index Printing Mode
 Allows increased productivity and flexibility for complex or high-demand production runs.
– Modular & Scalable Design
 Available in multiple configurations to match your current production needs while allowing for future expansion.
– Enhanced Operator Accessibility
 Automatic printhead lifting system provides easy access for cleaning, setup, and maintenance.
– Flexible Screen Holding System
 Compatible with pneumatic “U” clamp or pin registration systems.
– Integrated Flash Placement
 Flash cure units positioned within print stations for optimized workflow and efficiency.
– Durable Industrial Build
 Aluminum honeycomb pallets and heavy-duty construction designed for long-term performance.

Additional Features:
– Recipe saving system for repeat jobs
 – Multiprint capability
 – Odd/even mode
 – Skip function
 – Optional 4-cylinder squeegee carriage
 – Available in XL to 4XL configurations

– Voltage: 230V / 400V (model & region dependent)
 – Frequency: 50 / 60 Hz
– Maximum Consumption: ~6.5 kW – 13.5 kW (depending on model size)
– Air Consumption:
 ~130 L/min per printhead @ 7 bar

- Air Compressed Consumption: 30-74CFM (depending on configuration)
