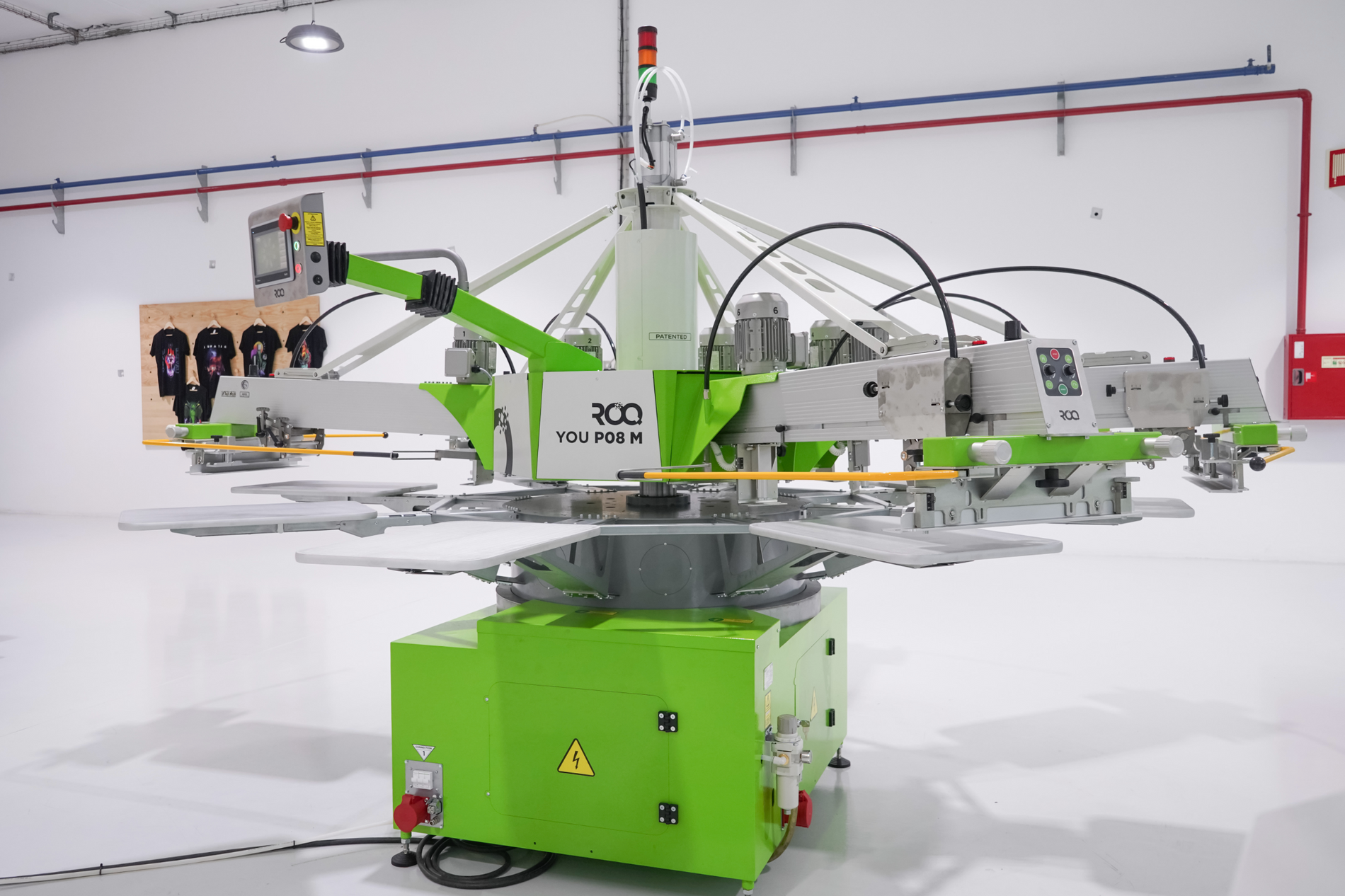

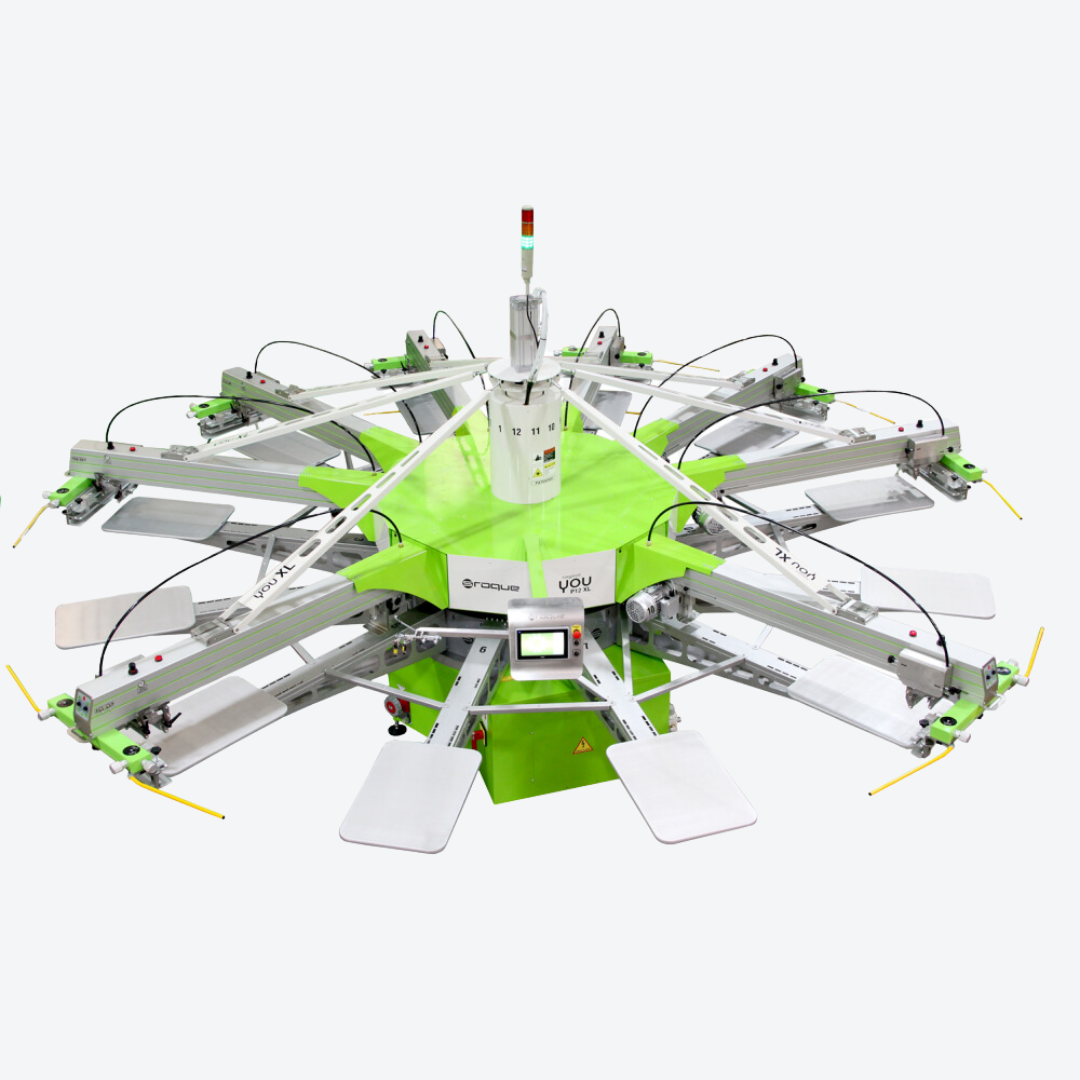

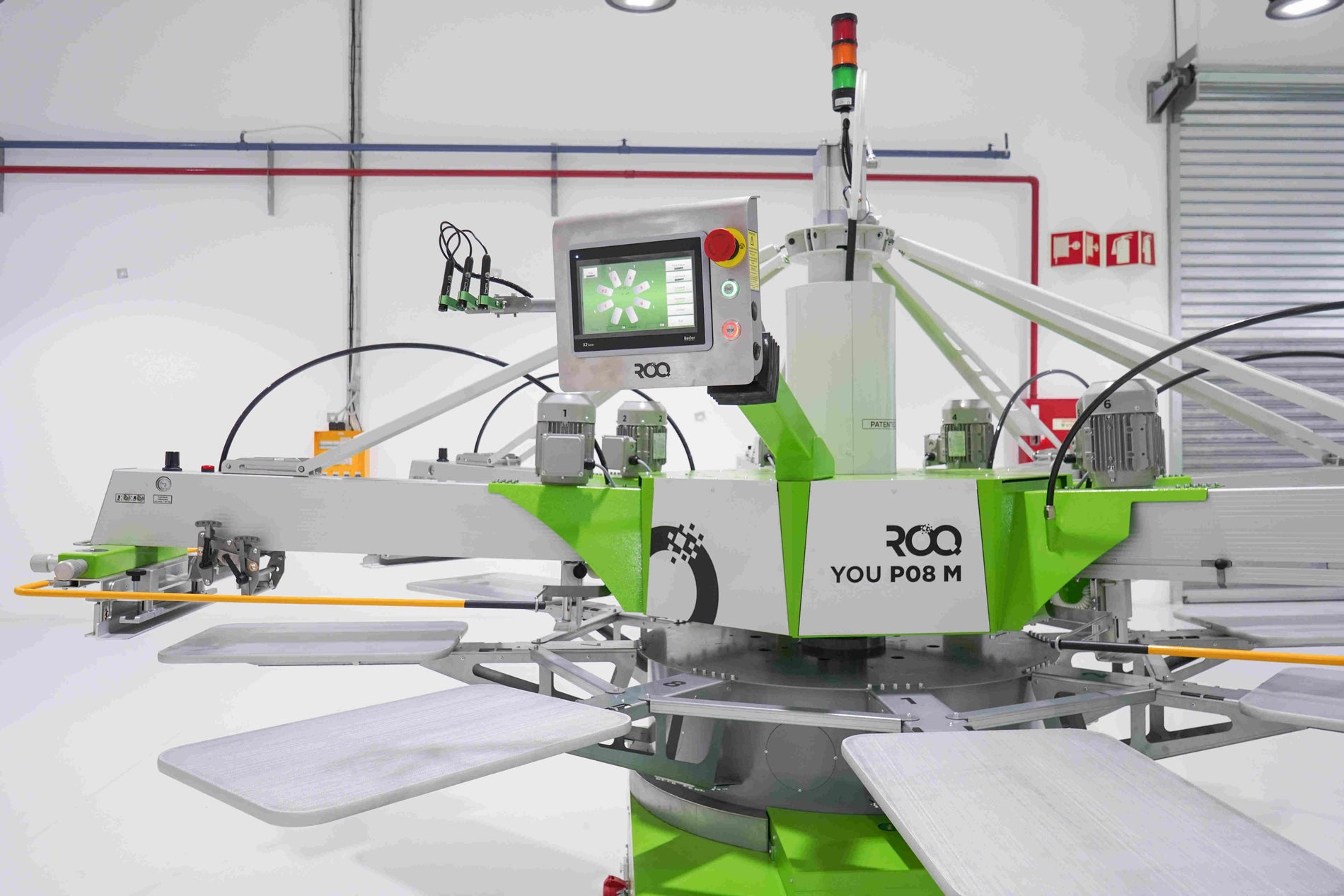

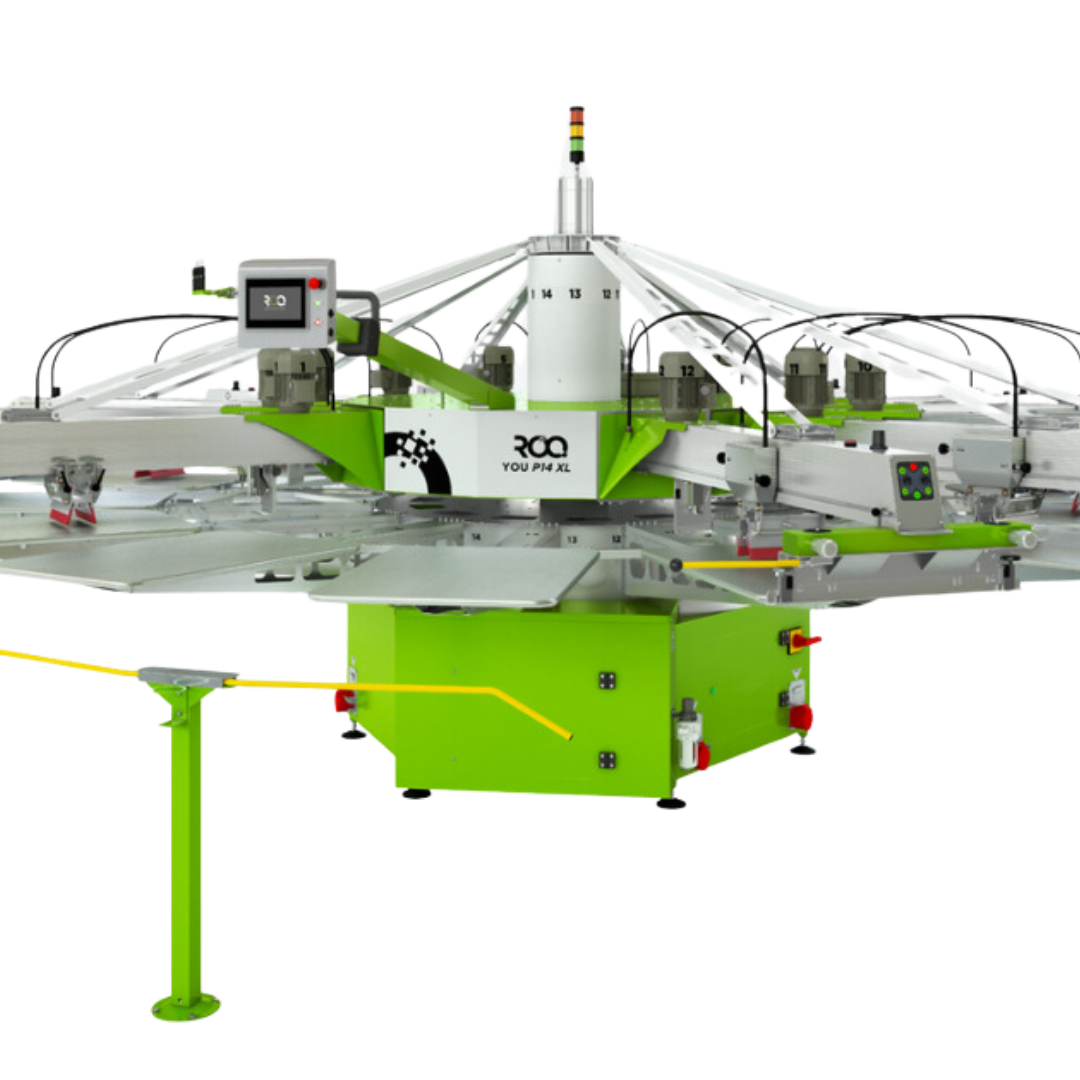

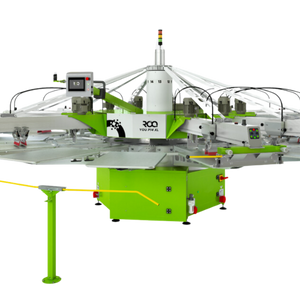

ROQ YOU Automatic Press

  • Operates with the Super Efficient & Quiet Geneva Ball Drive
  • M Models: 16x20" Print Area; XL Models: 20x28" Print Area
  • Outputs Up To 950 Pieces per Hour with 2 Operators
  • ROQ Solid 3 Year Warranty Included
Press Overview:

The ROQ YOU is a versatile and universal automatic press, ideal for both single and dual operator use. Powered by the quiet and efficient Geneva Ball Drive, the ROQ YOU allows for flexible operation and high output

With one operator, you can produce around 450 pieces per hour, and with two operators, you can double your output to 900+ pieces per hour. The ROQ YOU is available in two model sizes: the M model for P10 and under, with a standard printable area of 16x20", and the XL model for P10+, with an expanded printable area of 20x28".

The ROQ YOU comes in various configurations to suit your shop’s needs, including 4x8, 6x8, 6x10, 8x10, 8x12, 10x12, 10x14, 12x14, 12x16, and 14x16. Choose the configuration that’s right for you and double your production output.

Press Specifications:

- Number of Colors (min): 4

- Number of Colors (max): 14

- Number of Pallets (min): 8

- Number of Pallets (max): 16

- Communication Ports: 2

- Minimum Width of Base: 3.67'

Press Print Area & Max Frame Size:

- Maximum Print Size (M Models): 16.5" x 20"

- Maximum Print Size (XL Models): 20" x 28"

- Maximum Frame Size: 25" x 36"

Press Production Speed:

- Maximum Production Speed: 950/hr

Press Available Diameters:

- Diameter: 11.8' - 19.2' (depending on configuration)

Press Power Requirements:

- Maximum Consumption: 6 - 22 Amps (3 Phase) or 11 - 34 Amps (Single Phase), depending on configuration

ROQ Presses are uniquely pre-wired for both Single Phase and 3 Phase, allowing you to adjust the electrical phase internally if you move to a new location with different power requirements.

Press CFM Requirements:

- Air Compressed Consumption: 12 - 18 CFM (depending on configuration)

Questions?

Give us a call at 855.900.5888 or email us at: Hello@embellishr.com

THE MOST UNIVERSAL AUTOMATIC PRESS

THE ROQ YOU

ROQ E Automatic Screen Printing Press
ROQ FIT Automatic Screen Printing Press
ROQ Tunnel Gas Dryer

COVERED SQUEEGEE TO SQUEEGEE.

ROQ Solid 3 Year Warranty

With ROQ.US’s exclusive 3-Year ROQ Solid Warranty, you can stay at the top of your game with total peace of mind. Designed to perform efficiently for hundreds of thousands to millions of prints, these machines ensure that if anything goes wrong, you won’t pay for parts, shipping, tech time, or the ROQ technician’s travel when needed.

ROQ YOU Automatic Screen Printing Press

UPGRADE TO EFFICIENCY.

Streamline Your Workflow

The ROQ YOU is the perfect press to rapidly scale your screen printing business, consistently producing thousands of high-quality prints that define your reputation.

ROQ YOU Automatic Screen Printing Press

JUST PRINT IT.

Maximize Your Print

Features a standard print area for the M is 16x20” and for the XL is 20x28”, but can extend to 24” and 40” in double index mode.

ROQ YOU Automatic Screen Printing Press

THE CHOICE IS YOURS.

Power of Personalization

The ROQ YOU comes in various configurations to suit your shop’s needs, including 4x8, 6x8, 6x10, 8x10, 8x12, 10x12, 10x14, 12x14, 12x16, 14x16, 16x18 and beyond. Choose the configuration that’s right for you and double your production output.
