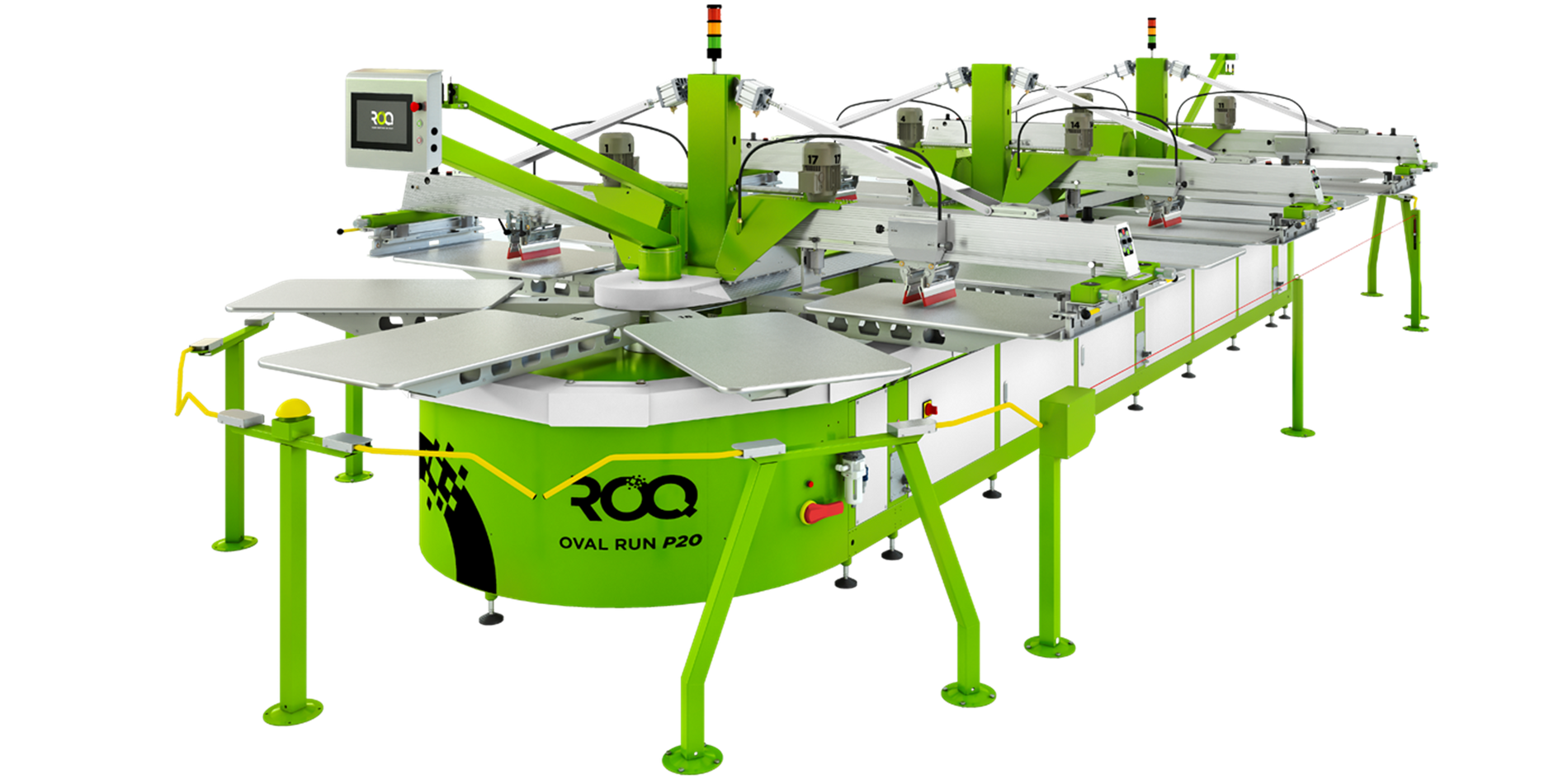

ROQ Oval Run XL Automatic Press

Product variants

Operates with the Super Smooth & Efficient Chain Drive
XL Models: 19.7" x 27.6" Print Area; XL+ Models: 23.6" x 31.5" Print Area
Outputs Up To 750 Pieces per Hour with 2 Operators
ROQ Solid 3 Year Warranty Included

Press Overview:

The ROQ Oval Run is a high-efficiency automatic oval screen printing press engineered for industrial production environments. Built with over 38 years of ROQ innovation, this platform is designed for scalability, precision, and high-speed output.
Ideal for high-volume shops producing large format prints, the Oval Run supports XL and XL+ pallet configurations, making it a strong solution for operations looking to expand capacity and efficiency.

Press Available Configurations

The ROQ Oval Run is available in multiple configurations to match your production needs, scalability goals, and shop layout.

– P20 Configuration: 6 Colors / 20 Stations / 6 Flash Positions

– P26 Configuration: 8 Colors / 26 Stations / 8 Flash Positions

– P32 Configuration: 10 Colors / 32 Stations / 10 Flash Positions

– P38 Configuration: 12 Colors / 38 Stations / 12 Flash Positions

– P44 Configuration: 14 Colors / 44 Stations / 14 Flash Positions

– P50 Configuration: 16 Colors / 50 Stations / 16 Flash Positions

– P56 Configuration: 18 Colors / 56 Stations / 18 Flash Positions

– P62 Configuration: 20 Colors / 62 Stations / 20 Flash Positions

– Custom configurations available based on production goals and layout requirements.

Press Print Area & Max Frame Size:

Maximum Print Size (XL Models): 19.7" x 27.6"
Maximum Print Size (XL+ Models): 23.6" x 31.5"
Maximum Frame Size: ~23.6" x 31.5" (600mm x 800mm class frames)

Press Production Speed:

- Maximum Production Speed: Up to 750 pieces/hour

Press Available Footprint (By Configuration):

(Measured by total machine length based on pallet count)

– P20: 29.7 ft
– P26: 38.5 ft
– P32: 46.6 ft
– P38: 54.8 ft
– P44: 62.9 ft
– P50: 71.0 ft
– P56: 79.2 ft
– P62: 87.3 ft

– Footprint will vary slightly based on configuration, layout, and auxiliary equipment.

Main Features:

– Aluminum honeycomb pallets for durability and heat resistance
– AC frequency-driven squeegee movement for smooth operation
– Independent control panel on each printhead
– Pneumatic screen holders (U-clamp or pin system options)
– Independent printhead elevation adjustment
– Central touchscreen control panel (10")
– Micro-registration system with vernier scale
– Independent control of print/flood speed, pressure, and angle
– Flash units positioned within printhead stations
– High-resolution encoder-controlled indexing system

Additional Features:
– Odd/even mode
– Multiprint capability
– Recipe saving system
– Skip function
– Optional 4-cylinder squeegee carriage
– Optional touchscreen upgrades

Press Power Requirements:

– Voltage: 230V / 400V (model & region dependent)
– Frequency: 50 / 60 Hz
– Maximum Consumption: ~4.5 kW – 12 kW (depending on model size)
– Air Consumption:
~75 L/min per printhead @ 7 bar

Press CFM Requirements:

- Air Compressed Consumption: 17-67 CFM (depending on configuration)
