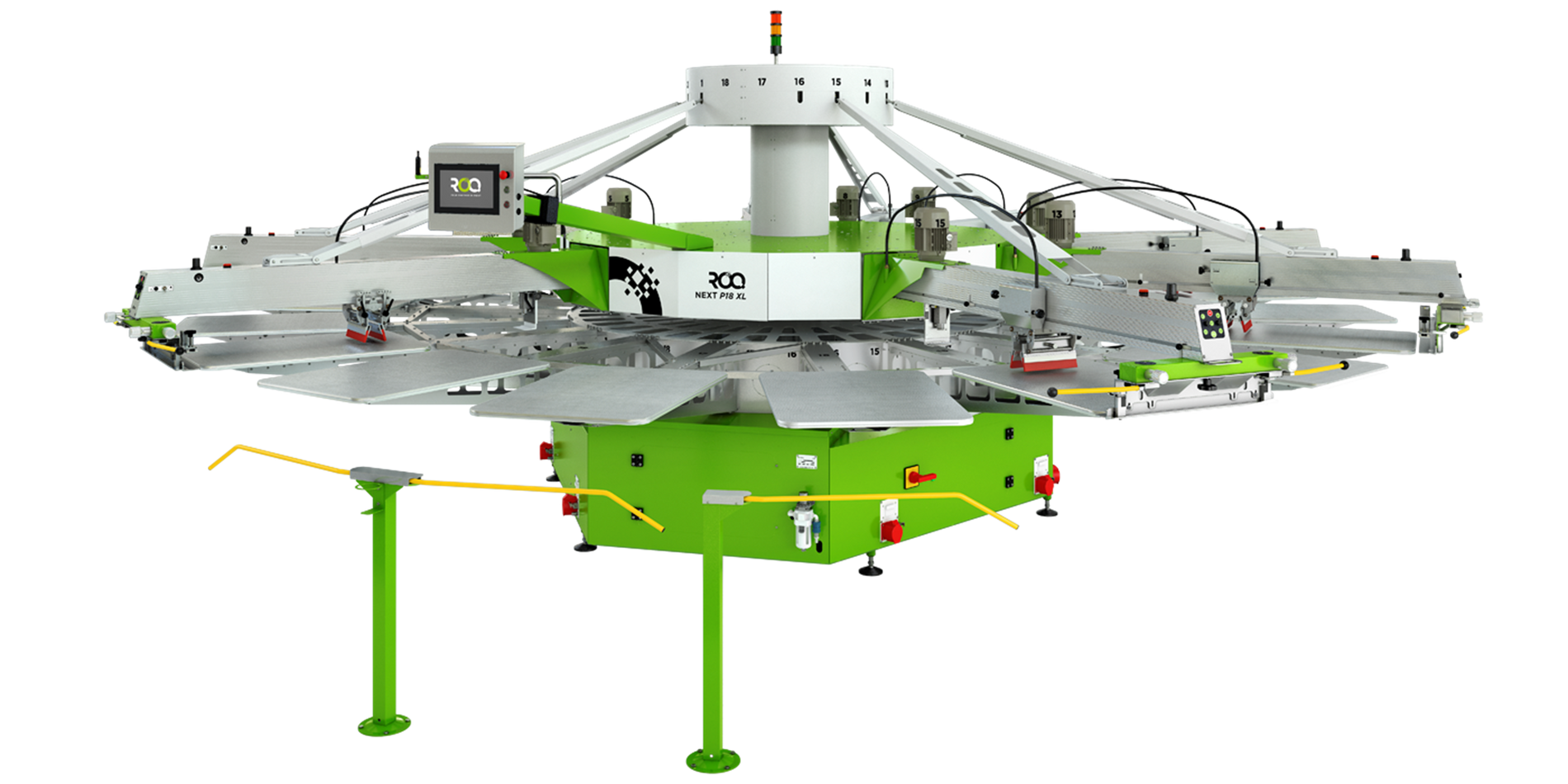

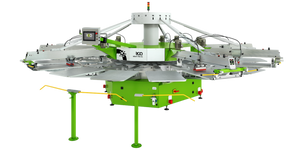

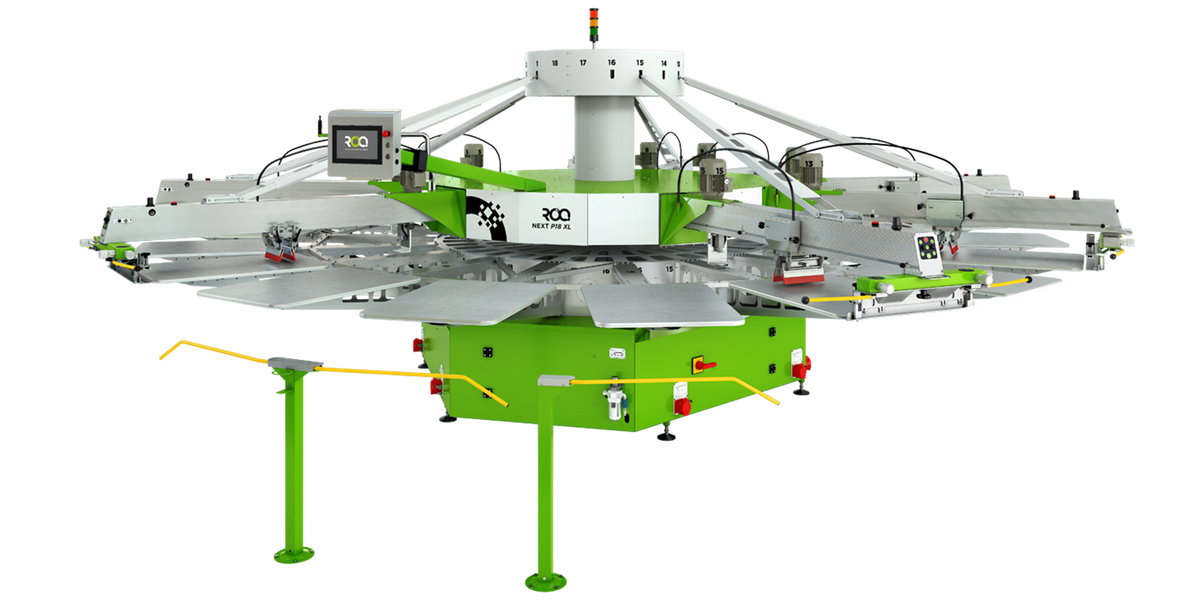

ROQ NEXT Automatic Screen Printing Press

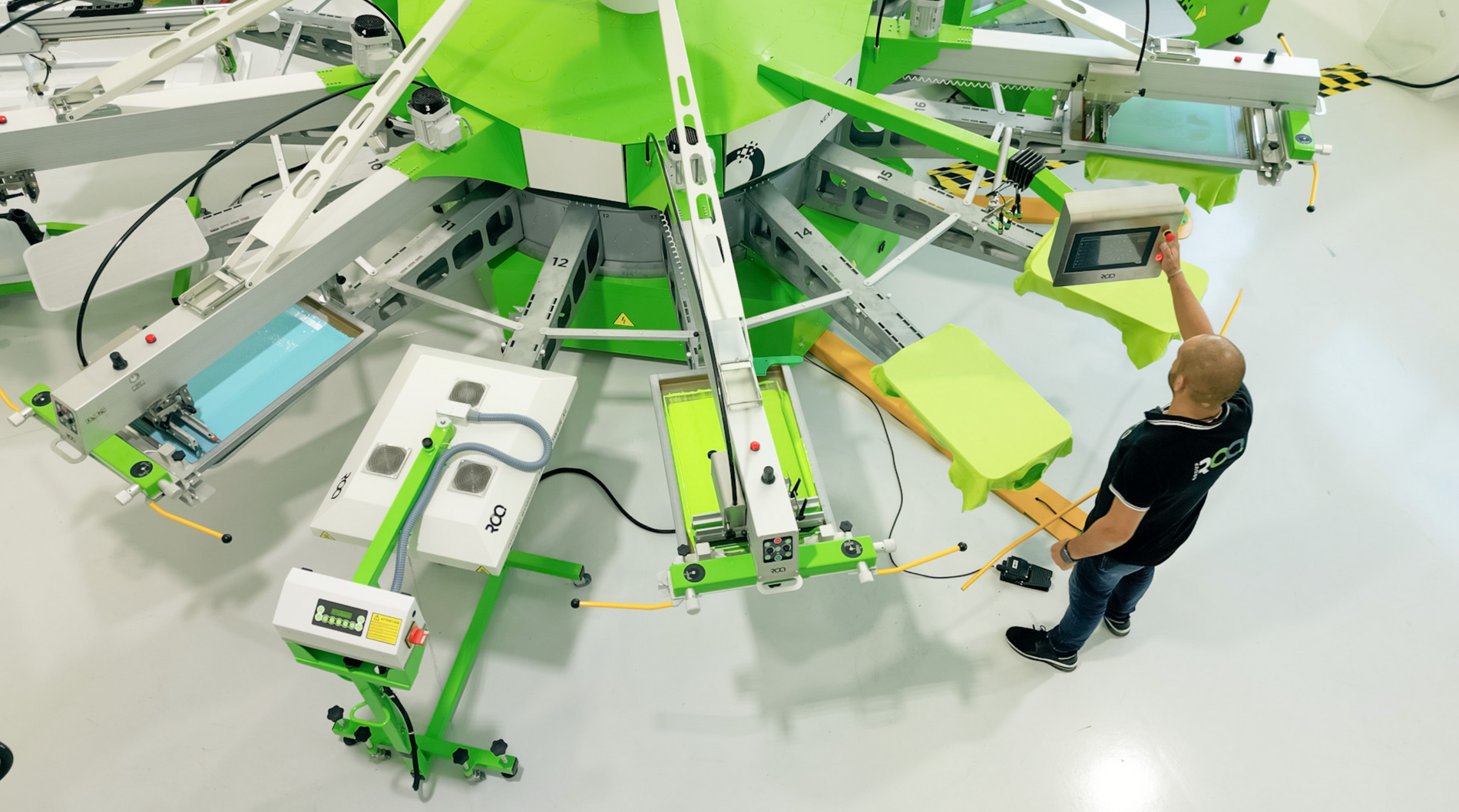

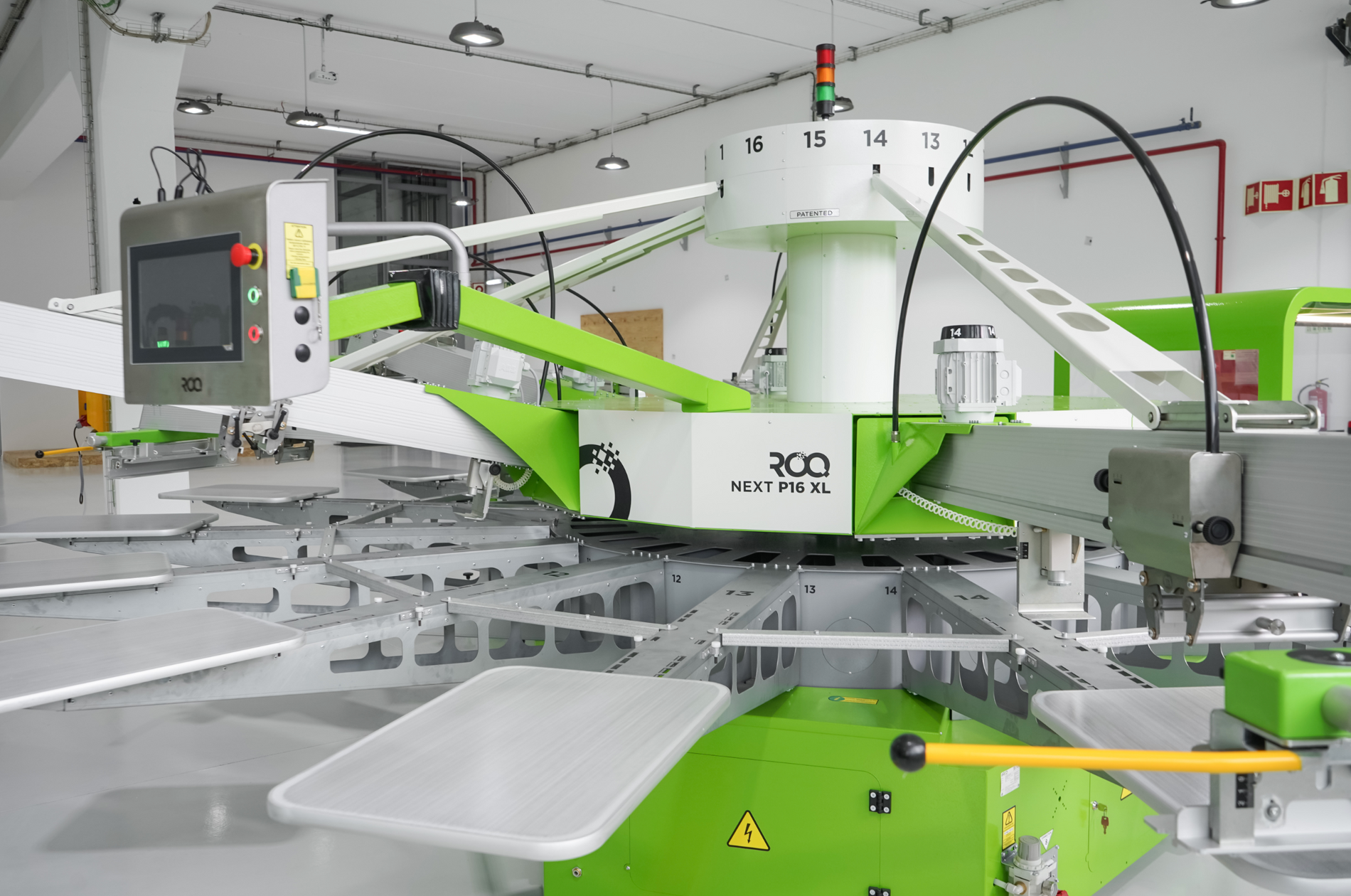

ROQ NEXT P16 XL Automatic Screen Printing Press
ROQ NEXT P16 XL Automatic Screen Printing Press

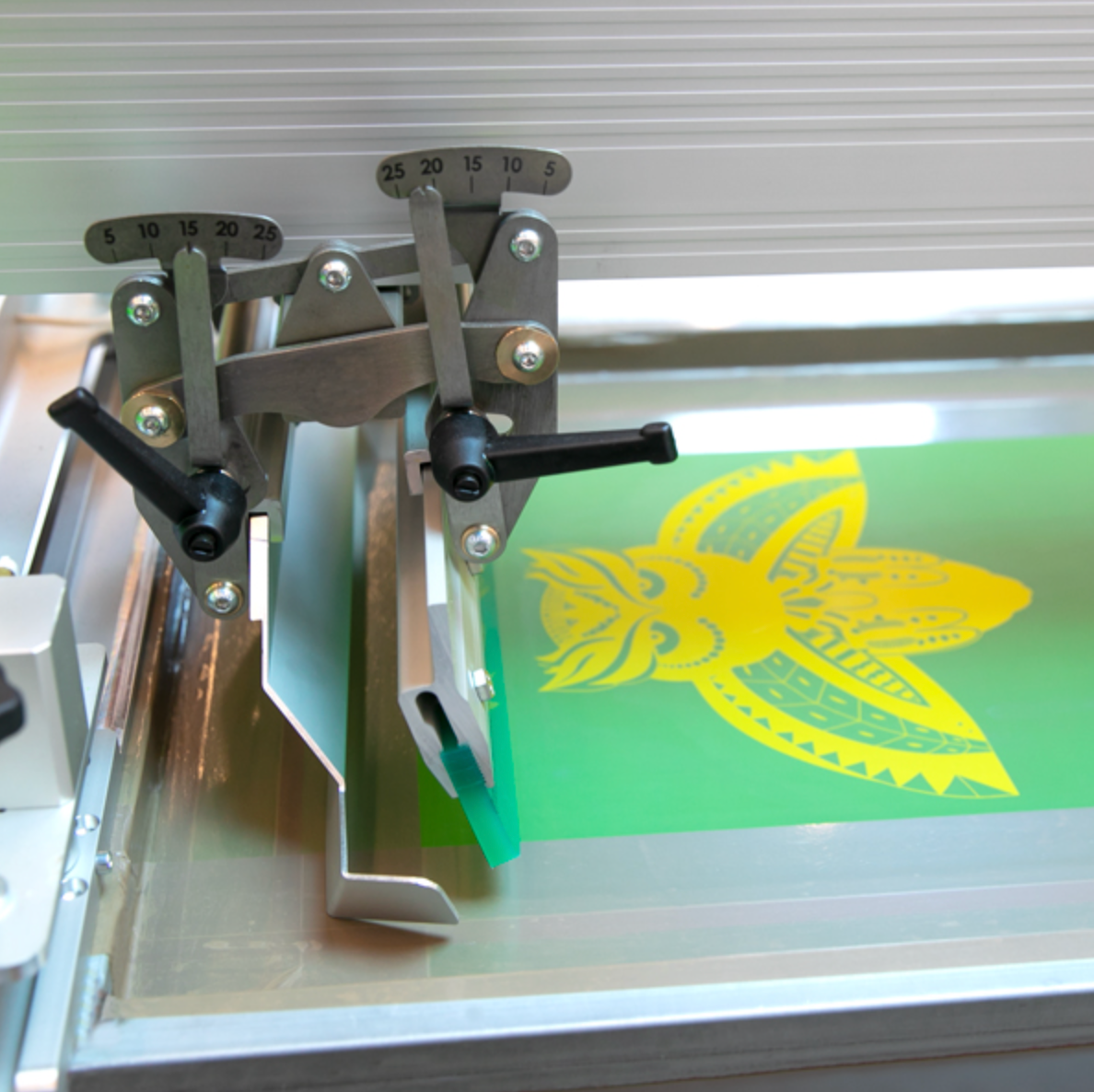

Close up of Screen with Yellow owl being printed on ROQ NEXT P16 XL Automatic Screen Printing Press
New Equipment
01
Product Overview

About This Equipment

What this equipment does, where it fits in production and the capabilities that matter.

The ROQ NEXT XL is a state-of-the-art automatic press that operates on the super quiet and highly efficient Chain Drive, offering a 20% efficiency boost over the ROQ YOU. This press can produce up to 1,100 pieces per hour seamlessly.

The ROQ NEXT XL is the perfect middle ground between the baseline ROQ YOU and the luxury ROQ ECO, offering advanced features and flexibility to meet the demands of your shop. Start printing faster, smarter, and more efficiently with the ROQ NEXT XL.

Configurations:
The ROQ NEXT XL comes in various standard and scalable configurations to meet your operational needs, including: 4x8, 6x8, 6x10, 8x10, 8x12, 10x12, 10x14, 12x14, 12x16, 14x16, 14x18, 16x18, plus Custom configurations for larger needs.

Key Equipment Highlights
  • Independent Lift Printheads: Allows for a hefty print area of 20x28" as standard, with the capability to double index for prints up to 33x39".
  • Dual-Chain Drive System: Enables 'Go-To' platen functionality for simple registration and on-demand printing from the LCD screen, with faster indexing for high-quality prints.
  • Half Index Feature: Facilitates quick job quality checks by allowing side-to-side press movement to spot check prints.
  • Hybrid Digital Compatibility: Compatible with ROQ Hybrid Digital at P18+ for ultimate versatility in production.
  • Mega-Efficient & Quiet Chain Drive: Provides smooth, reliable operation with exceptional indexing accuracy.
  • Standard Print Area: Accommodates 20" x 28" printing, with 33" x 39" capability in Double Index mode.
  • Production Speeds Up to 1,100 Pieces Per Hour: Achieve high-volume output with up to 1,100 garments per hour using two operators.
02
Available Press Configurations

Order the Press That Fits Your Production.

This ROQ press can be ordered through Embellishr in the available configurations for this model.

Available Configurations

Choose Your Color + Station Configuration.

Select the configuration that fits your production needs, available floor space and growth plans. Embellishr can help you determine the right setup before your equipment is quoted.

6×8 6 Color / 8 Station
8×10 8 Color / 10 Station
8×12 8 Color / 12 Station
10×12 10 Color / 12 Station
10×14 10 Color / 14 Station
12×14 12 Color / 14 Station
12×16 12 Color / 16 Station
14×16 14 Color / 16 Station
14×18 14 Color / 18 Station
16×18 16 Color / 18 Station
18×20 18 Color / 20 Station
Need Help Choosing? We'll help match the press to your production.

Final pricing, specifications, footprint and utility requirements vary by press model and selected configuration.

03
Complete Equipment Information

Equipment Details

Configuration, technical specifications and facility requirements in one place.

Equipment
Manufacturer
ROQ
Model
ROQ NEXT
Equipment Type
New Automatic Press
Availability
Available Immediately
Production + Facility Requirements
Electrical Requirements
3PH | 7-30A or 1PH | 9-41A
Air Supply
21 - 58 CFM (depending on configuration)

Dimensions

Press Print Area & Max Frame Size:

  • Maximum Print Size: 20x28" or 33x39" (Double Index)
  • Maximum Frame Size: 25x36"+
Project Information
Production Notes
  • Maximum Production Speed: 1,100/hr
