ROQ NEXT XL SHOP PACKAGE
SCALE YOUR SHOP.
Full ROQ NEXT XL Shop Package
Full ROQ NEXT XL Shop Package:
A serious upgrade for shops ready to scale. This ROQ NEXT XL 10x12 runs on a smooth chain drive system and can produce up to 1,100 pieces per hour with just two operators. Standard 20x28" print area expands to 33x39" in double index, perfect for oversized
and streetwear printing.
This isn’t just a press, it’s a complete production ecosystem. With CTS imaging, LED exposure, automatic coating, dual smart flashes, and a 60" gas dryer, this setup supports a streamlined workflow that reduces labor, improves consistency, and increases output at every stage.
Paired with a premium Atlas Copco compressor, full platen and tooling packages, and key production accessories, this turnkey system is in excellent condition and ready to immediately elevate your shop’s capacity, efficiency, and overall production control.
Package Includes:

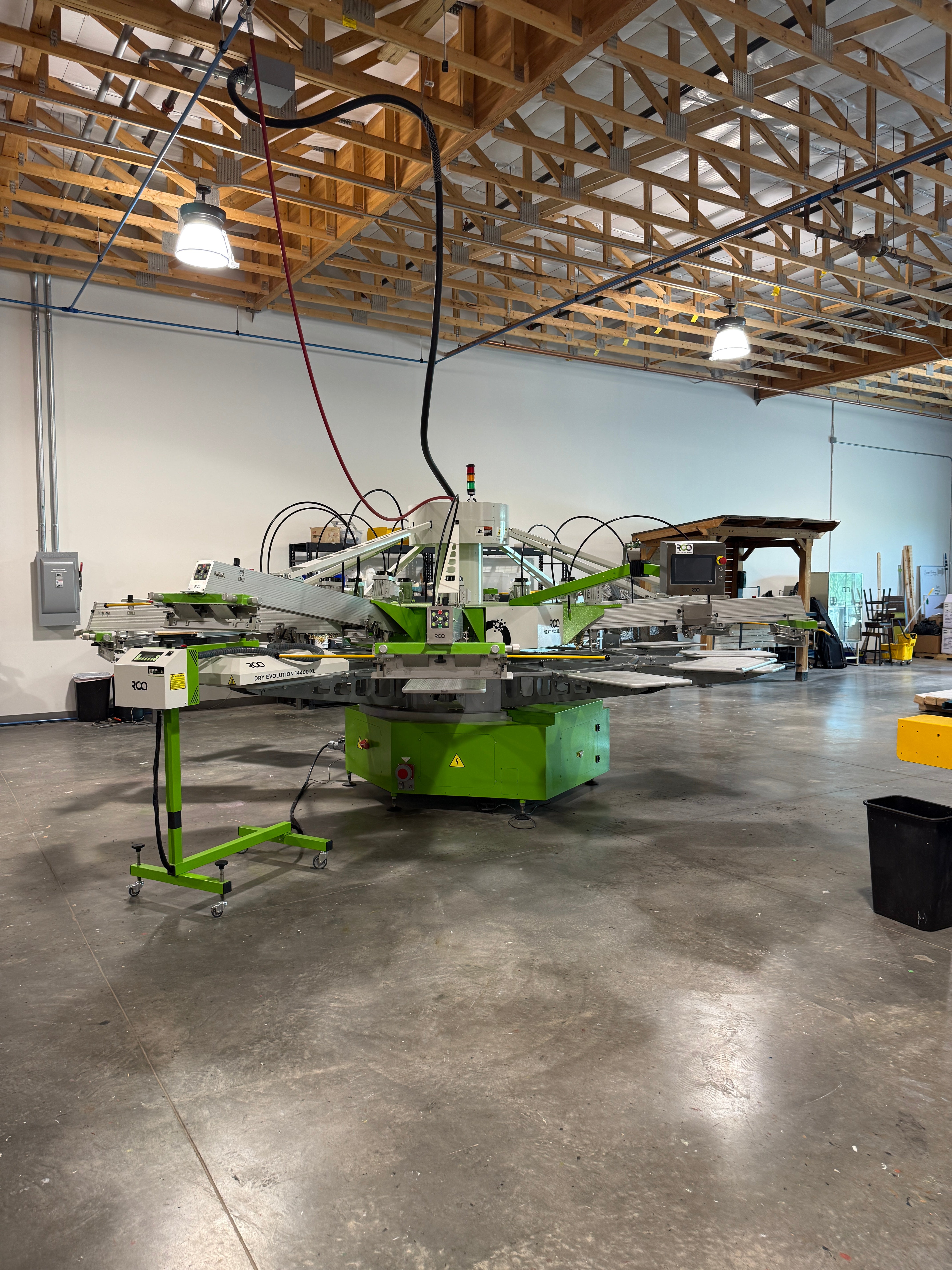

ROQ NEXT XL 10 Color 12 Station Automatic Press
(2) ROQDry EVO 14400XL Smart Flashes 20x28"
M&R Sprint 2000 Gas Dryer 60"
M&R Uni-Kote Auto Coater
(2) Troughs/Scoop Coaters
Exile Spyder II CTS 30 Wax Unit
Exile V-Lux LED Exposure Unit
PC Computer w/Win RIP Dongle
Atlas Copco Rotary Screw Compressor
(6) ROQ 3.75" Dual Sleeve Platen by Ryonet
ROQ 23x31" PRU Registration Pallet
Complete Squeegee & Floodbar Set (16")
Complete Aluminum Platen Set (16x23.5")
Wearable components (squeegees, floodbars, platens) are included in as-is condition and may show normal use. Replacement components are readily available if desired.
Equipment Specifications:
🔧 Press Specifications
- Press Manufacturer: ROQ
- Press Model: NEXT
- Press Year: 2022
- Press Cycle Count: 505k
- Press Diameter: 17’
- Press Standard Print Area: 20x28" or 33x39" (Double Index)
- Configuration: 10 Color/ 12 Station
Power & Air Requirements
- Press Air Supply: 33 CFM
- Press Electrical Requirements: 3PH | 13A | 230V, or, 1PH | 18A | 230V
🔥 Flash Units (x2)
- Flashes Manufacturer: ROQ
- Flashes Model: ROQDry Evolution 14400XL Smart Flashes
- Flashes Year: 2023
- Flashes Size: 20x28"
Power Requirements
- Flashes Electrical Requirements: 3PH | 44A Each | 230V
🛠 Air Compressor
- Compressor Model: G2-7
- Compressor Year: 2024
- Compressor Tank: 60 Gallon
- Compressor Horsepower: 10
Power Requirements
- Compressor Electrical Requirements: 1PH | 60 HZ | 115V or 3PH | 60 HZ | 230V
♨️ Dryer Specifications
- Manufacturer: M&R
- Model: Sprint 2000
- Year: 2011
- Total Length: 20'
- Belt Width: 60”
- Chamber: 12’
- Infeed: 4'
- Outfeed: 4’
Power Requirements
- Electrical Requirements: 3PH | 22A | 230V
⚙️ Coater Specifications
- Manufacture: M&R
- Model: Uni-Kote UKT231431016A
- Year: 2021
- Max Screen Size: 31"x43"
Power & Air Requirements
- Power Requirements: 1PH | 115V | 10A
- Air Supply: 1 CFM @ 100PSI
🔧 CTS Specifications
- CTS Manufacture: Exile
- CTS Model: Spyder II 30 CTS
- CTS Year: 2024
- CTS Network: Ethernet
- CTS Operating Temperature: 50°F to 86°F / 10°C to 30°C
- CTS Operating Humidity: 35% to 75% non-condensing
- CTS Ink Type: Solid block / Water dispersible photo resist mask
Power & Air Supply:
- Power Requirements: 120v/220v 50-60 HZ 15 amp
- Compressed Air: Required
🔥 V-Lux Specifications:
- Exposure Manufacture: Exile
- Exposure Model: V-Lux LED
- Exposure Year: 2023
- Operating Temperature: 50°F – 95°F (10°C – 35°C) 50°F – 95°F (10°C – 35°C)
- Storage Temperature: 40°F – 122°F (5°C – 50°C) 40°F – 122°F (5°C – 50°C)
- Operating Humidity: 35% – 75% Non-Condensing 35% – 75% Non-Condensing
- Operating Mode: Auto/Manual On/Off Auto/Manual On/Off Exposure Setup: 4.3"
- Dimensions: 35.25" x 16" x 51"
Power Supply:
- Power Requirements: 110 VAC/220
Availability & Shipping Details:
Dispatch Timeline: Ships within 4–6 weeks after final payment, allowing for professional dismantling, crating, and preparation. Need it faster? Ask us about expedited options.
Location: Arizona
Shipping: Fully insured freight coordinated on your behalf. We handle the logistics from origin to delivery, with custom quotes based on your location to ensure the most efficient and cost-effective transport.
Optional Professional Installation:
Take the guesswork out of setup. Our experienced technicians can handle the installation of your equipment, ensuring everything is assembled, connected, and running properly from day one.
Most customers choose installation for a faster, smoother transition into production.
Installation for automatic press packages and larger equipment typically starts around $12,000, depending on the package and scope.
This includes full equipment assembly, connection to electrical, air, gas, and water systems, system checks, and a hands-on overview of your machine. For press packages, your team will also run a live print during installation.
To ensure a smooth install, all required utilities (power, air, gas, water) must be in place and meet specifications prior to technician arrival.
Want installation included? Let us know when requesting a quote and we’ll include it in your total.
Optional Professional Training:
Get confident running your press from day one. Our hands-on training focuses on the operation, mechanics, and maintenance of your equipment, so you and your team know exactly how to run, troubleshoot, and care for your machine.
Training starts at $1,000 for 8 hours, with the option to add additional days at a package rate.
Accelerate your team’s ability to run and maintain your press with confidence.
Want to include training? Let us know when requesting your quote and we’ll build it into your package.
