SAATI LTS E70B Direct Laser Imaging & Exposure Unit
Product Details:
SAATI LTS E70B

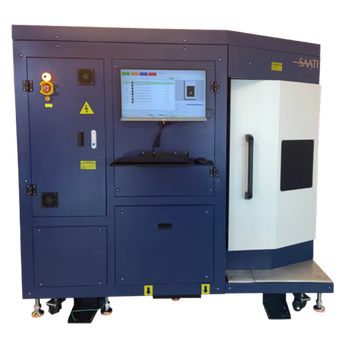

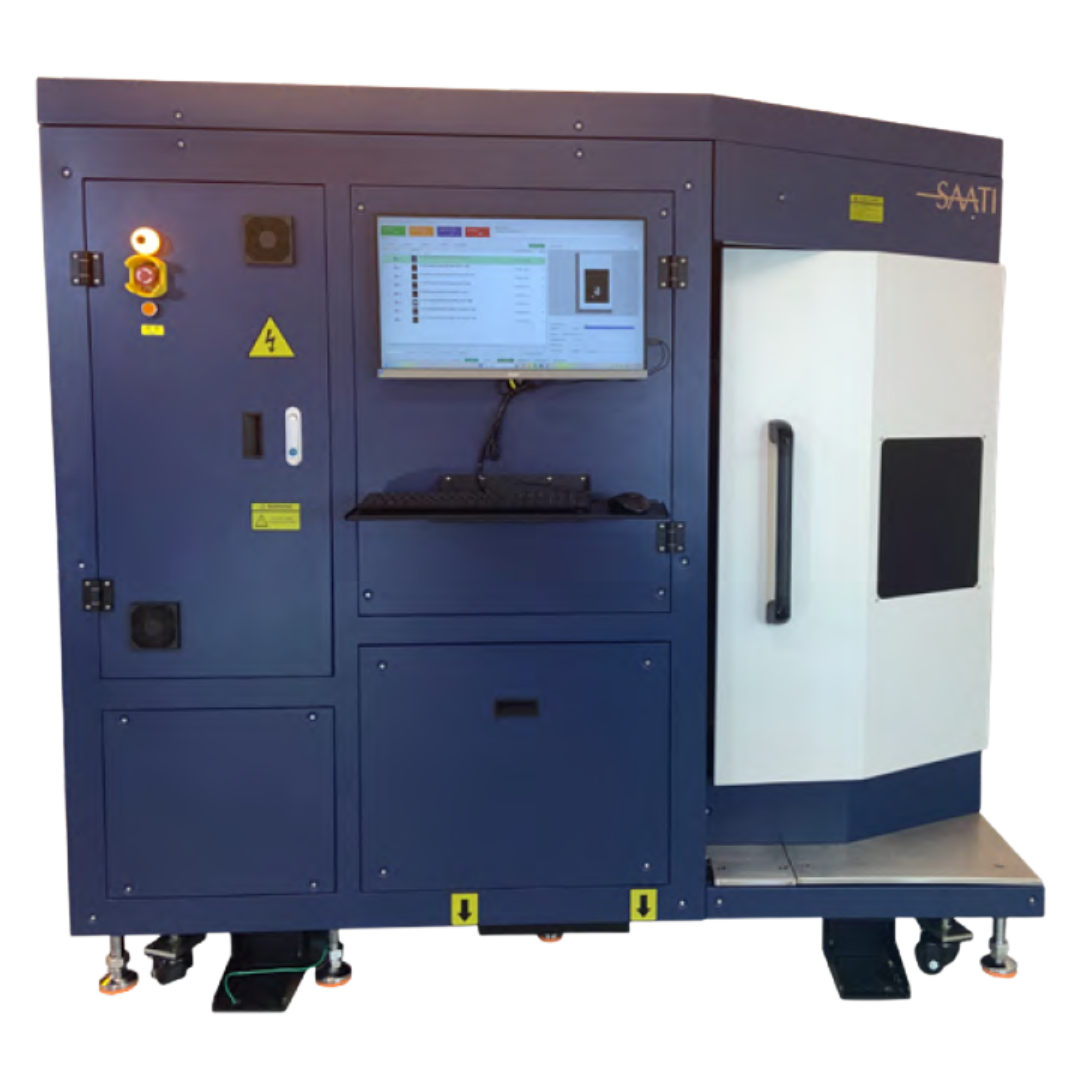

The SAATI LTS E70B is a self-contained, high-efficiency direct laser imaging and exposure unit built for precision and reliability in screen printing. With its vertical, glass-free design and integrated software, it eliminates the need for film positives or vacuum, offering a streamlined and cost-saving solution for modern print shops.

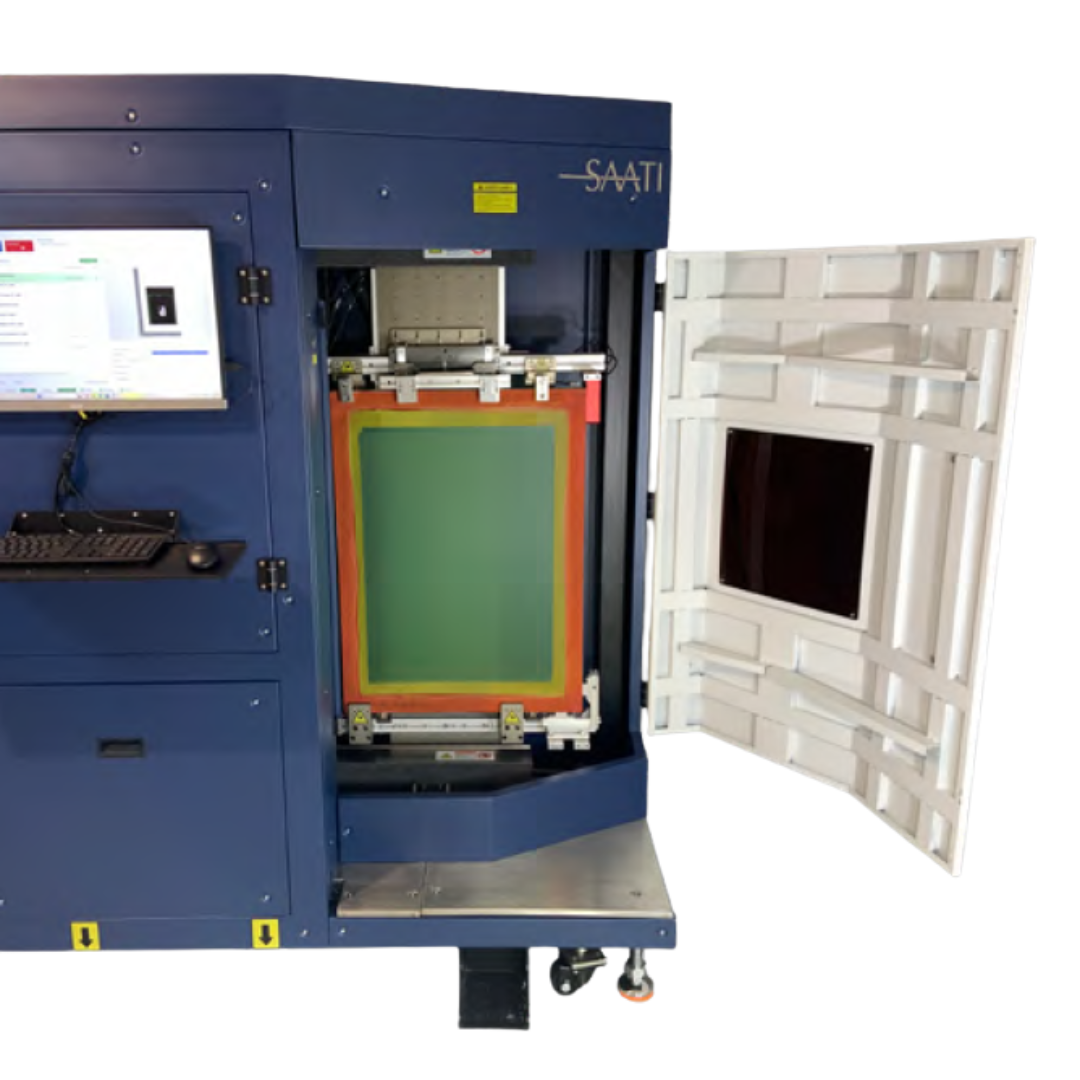

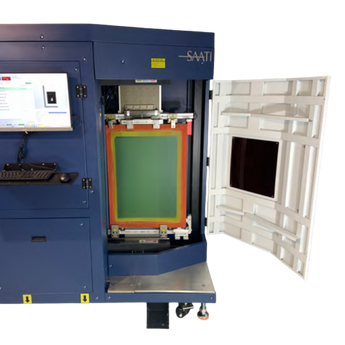

Screen Capacity: Designed to image and expose one screen up to 25" x 36" (640 x 920 mm), making it a strong fit for shops working with standard-size frames and consistent production needs.

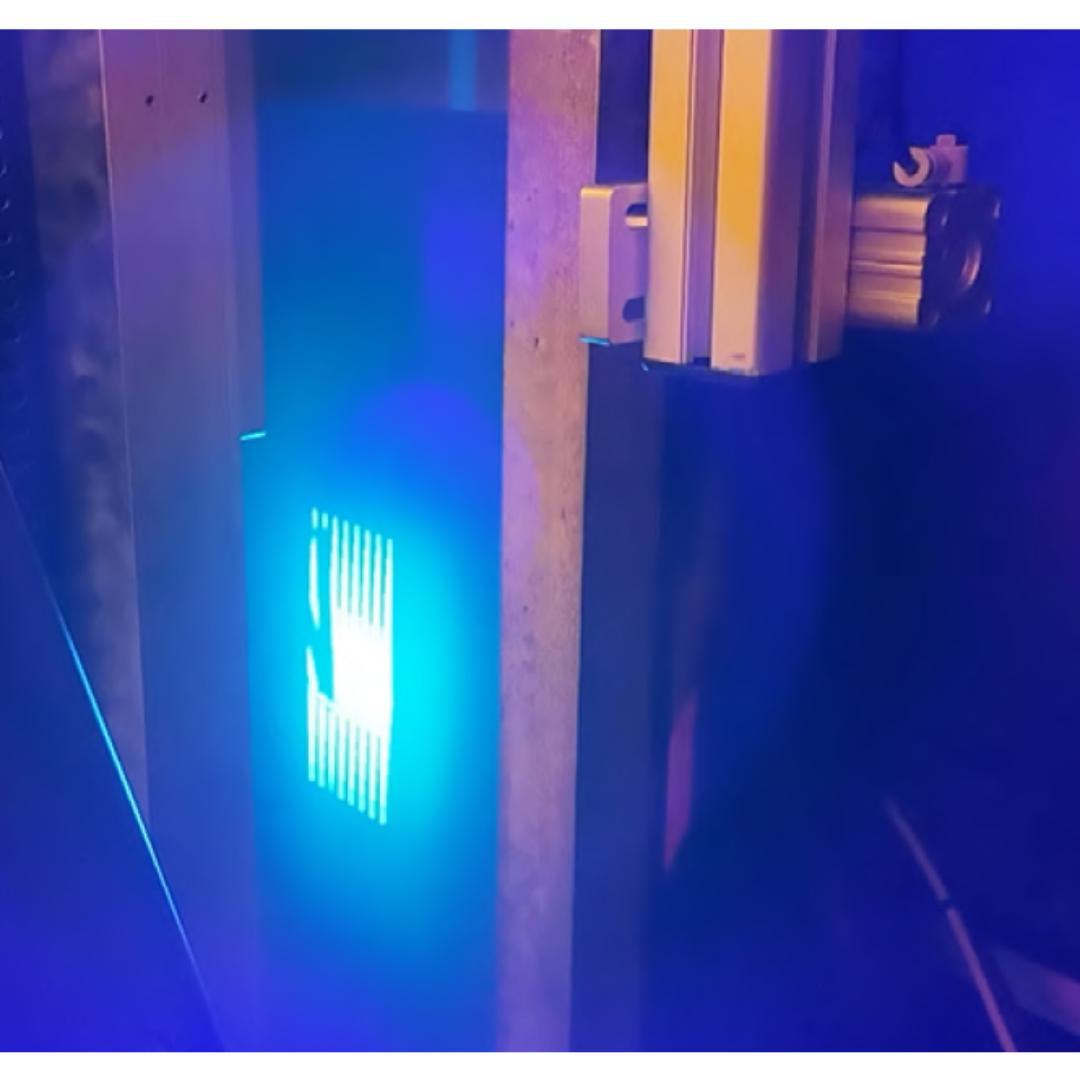

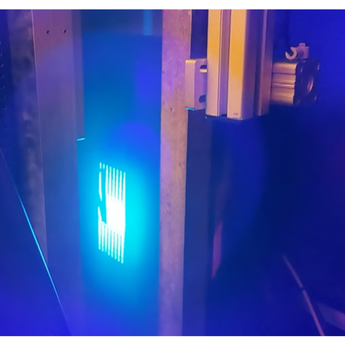

Resolution: Powered by a planar array of 64 lasers with resolution options of 1270 and 2540 DPI, it delivers sharp detail, high-definition images, and thorough curing of all emulsions and stencil films, including high-density applications.
Ease of Use: Operated via PC with user-friendly software, the unit supports optional RIP programs and processes 1-bit TIFF file formats, ensuring compatibility with a wide range of workflows.
Performance & Efficiency: Features a pneumatic frame clamping system compatible with leading registration systems (MHM, Tri-Lock), upgraded drive and encoder systems for precise pixel placement, and low power consumption to reduce operational costs.
Durability: Built for long-term performance with a 10,000+ hour laser life, easy maintenance, and reliable exposure quality that enhances consistency across production runs.
The SAATI LTS E70B is an excellent choice for print shops seeking dependable, high-resolution computer-to-screen imaging in a compact vertical design. Balancing efficiency, precision, and cost-effectiveness, it’s a versatile solution for elevating daily production output while minimizing consumables and energy use.
Dimensions:
- Machine Dimensions: 2070 x 712 x 1880 mm | 81.5 x 28 x 74” - allow an additional 610 mm / 24” on the right side and 203.2 mm / 8” in front for the screen chamber door to fully open
- Maximum Image Size: 600 x 800 mm | 23.6 x 31.4”
- Maximum Frame Size: 640 x 920 mm | 25 x 36”
Power Requirements:
Compatible with 110V or 220V input
Air Requirements:
Requires compressed air for clamps (90 psi, less than 1 CFM)
