SAATI LTS 8012 HD Direct Laser Image & Exposure Unit

+ New Equipment

3 Media Manufacturer Product

Shop New Available Immediately

SAATI LTS 8012 Direct Laser Image & Exposure Unit

$95,995

Final pricing may vary by configuration, shipping, installation, training, applicable taxes, and manufacturer requirements.

Manufacturer Saati Model LTS 8012 HD Equipment Type Darkroom Equipment Availability Available Immediately

Manufacturer Warranty Confirmed during quote

Financing Available with approval

Project Support Shipping, install and training

Product Information

Equipment Details

Equipment Details Manufacturer, model, configuration and availability

Manufacturer: Saati
Model: LTS 8012 HD
Equipment Type: Darkroom Equipment
Availability: Available Immediately

Description & Features Product overview and primary equipment capabilities

About This Equipment

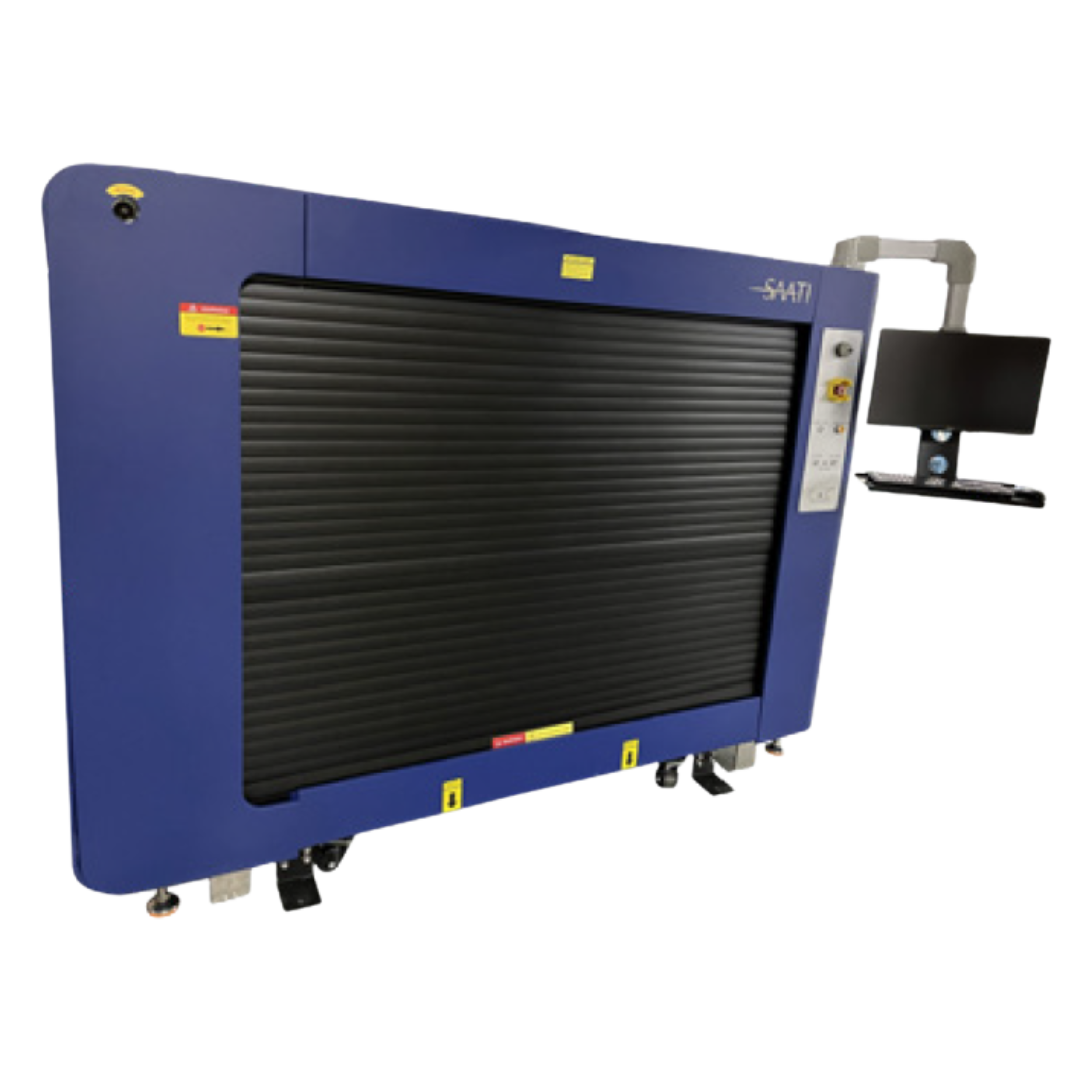

SAATI LTS 8012 HD Direct Laser Image & Exposure Unit

The SAATI LTS 8012 HD is a high-efficiency, precision-driven direct laser imaging and exposure unit, designed to streamline screen printing operations. With a vertical, glass-free design, it eliminates the need for vacuum or film positives,
making it a cost-effective and versatile solution for high-production shops.

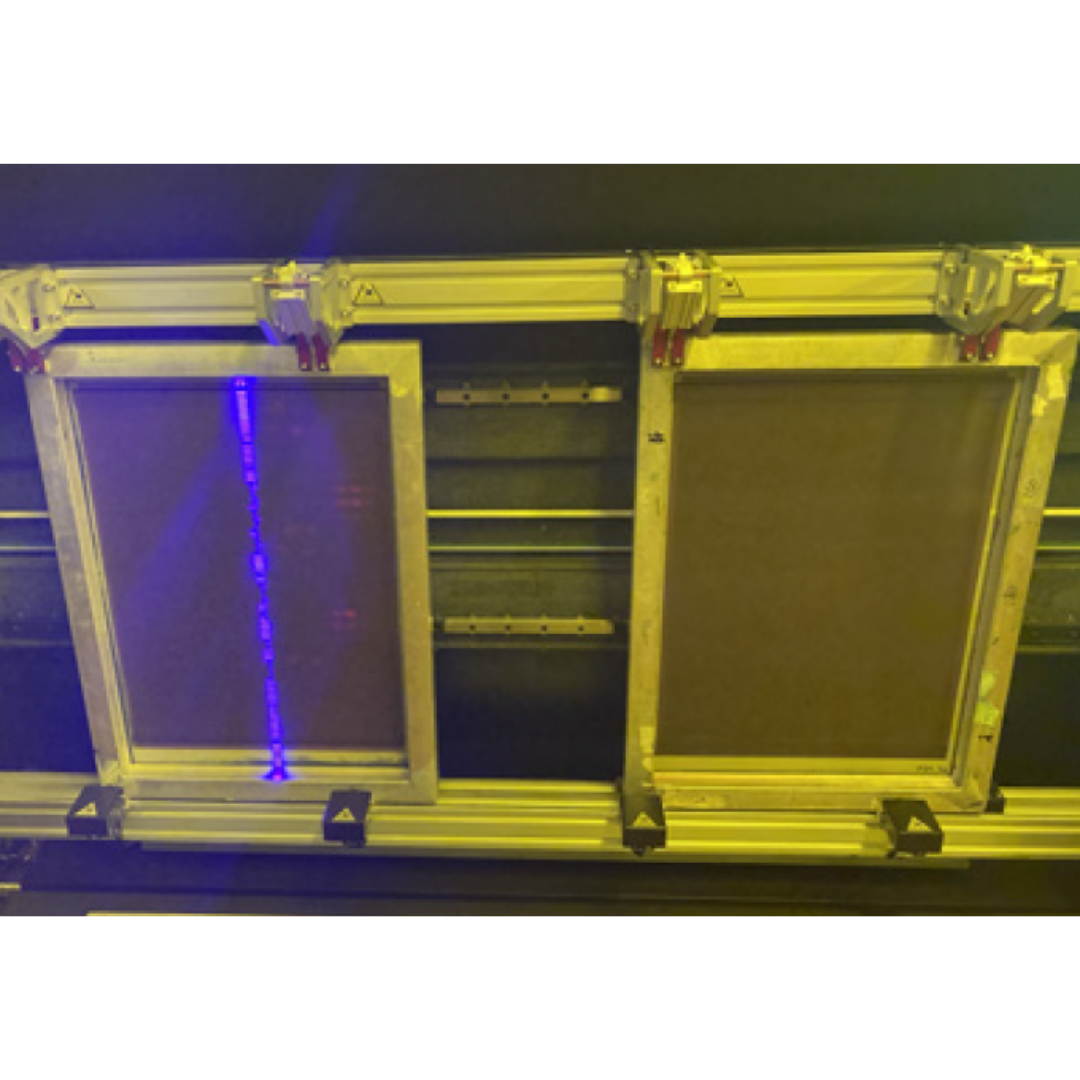

Screen Capacity

Holds one screen up to 41.3” x 63” or two screens up to 25” x 36” simultaneously, maximizing efficiency for both large-format and high-volume screen printing workflows.

Resolution

Featuring a 128-laser array with resolutions from 847 to 2540 DPI, the LTS 8012 HD delivers incredible detail, ideal for intricate designs, halftones, and high-precision graphics.

Exposed Emulsion Coverage

Designed for all emulsions and stencil films, it ensures optimal exposure with minimal waste, reducing the need for additional taping and increasing overall efficiency.

Ease of Use

Operated via PC with optional RIP software, it supports 1-bit TIFF file formats, ensuring seamless integration with existing workflows.

Energy Efficient & Cost-Effective

With low power consumption and a 10,000+ hour laser diode lifespan, the LTS 8012 HD minimizes operational costs while delivering consistent, high-quality imaging.

The SAATI LTS 8012 HD is the ultimate solution for screen printers requiring precision, high-speed imaging, and cost-efficiency. Elevate your production and streamline your workflow!

Equipment Highlights

SAATI LTS 8012 vs. LTS 8012 HD – Key Differences

The SAATI LTS 8012 HD builds upon the capabilities of the LTS 8012, offering advanced features for improved precision, consistency, and efficiency. Here’s how the two models compare:

✅ Higher Resolution – The LTS 8012 HD supports resolutions up to 5080 DPI, delivering finer detail and sharper imaging compared to the LTS 8012's maximum of 2540 DPI.

✅ Enhanced Frame Clamping – The HD model features individual frame clamp controls, allowing for more precise handling and registration when imaging multiple screens.

✅ System Upgrades for Precision – The LTS 8012 HD includes dual encoders and frame temperature sensors, improving image accuracy, consistency, and repeatability across every screen.

The LTS 8012 HD is the ideal choice for screen printers seeking the highest level of detail, accuracy, and efficiency, making it perfect for demanding, high-precision production environments.

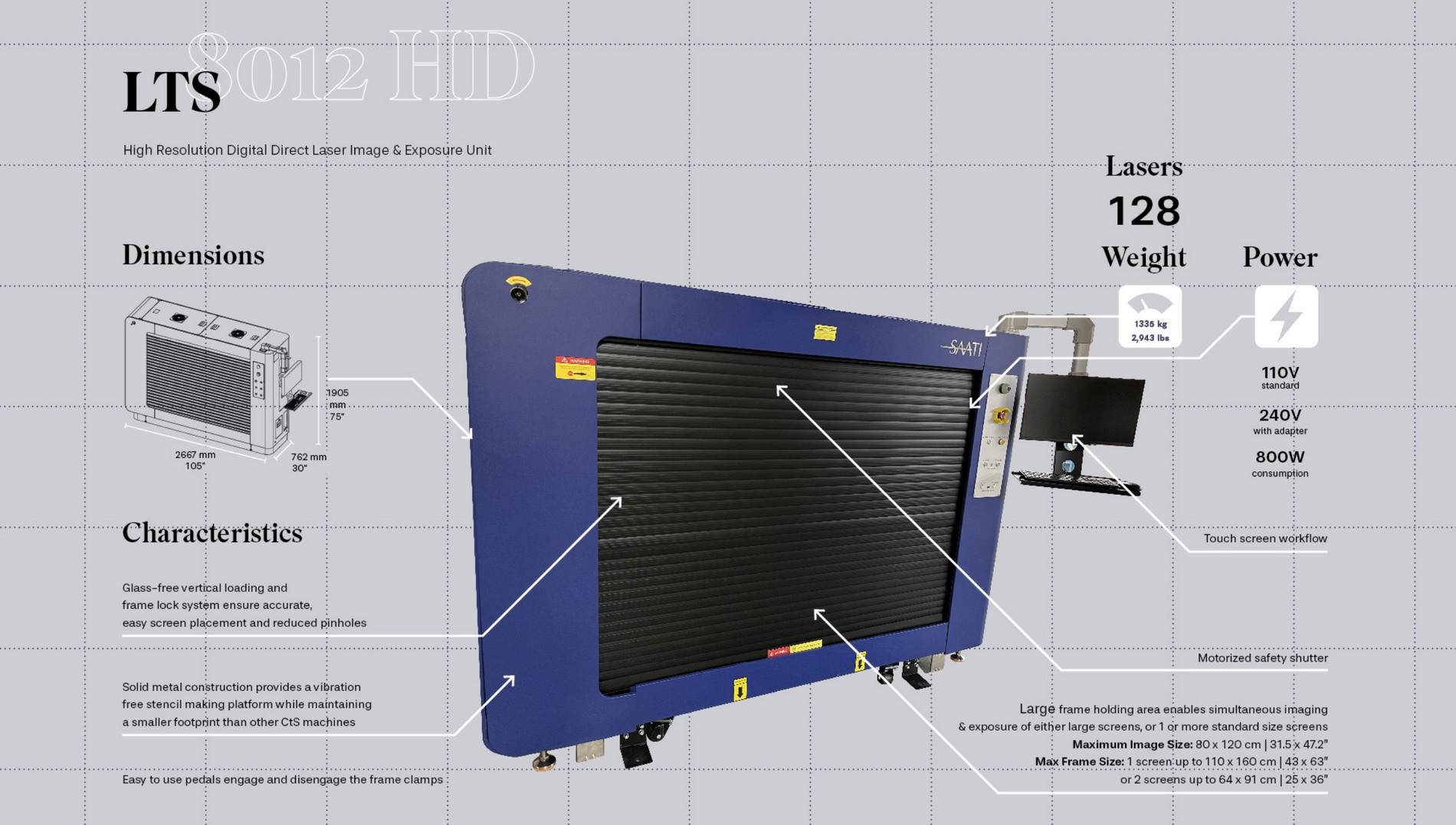

Technical Specifications Electrical, air and facility requirements

Electrical Requirements: Compatible with 110V or 220V input
Air Supply: Requires compressed air for clamps (90 psi, less than 1 CFM)

Dimensions

Machine Dimensions: 105 x 30 x 75”
Maximum Image Size: 47” x 31”
Maximum Frame Size: 63 x 43” or 2 screens up to 25 x 36”
Larger frame layouts are possible - contact us to learn more!

New Equipment Purchase Support Available support during quote and project planning

✓

Manufacturer Warranty Warranty coverage is supplied by the manufacturer and confirmed during quoting.

✓

Configuration Review Product scope and available configuration options may be reviewed before the quote is finalized.

✓

Financing Available Qualified purchasers may apply through available independent financing providers.

✓

Shipping Review Freight requirements, delivery access and destination details can be reviewed during quoting.

✓

Facility Planning Electrical, air, space and production requirements may be reviewed before purchase.

✓

Installation Coordination Installation services may be coordinated based on the equipment and project scope.

✓

Training Options Available training is determined by the manufacturer, equipment and project requirements.

✓

Project Support Embellishr can help organize communication and applicable project milestones.
