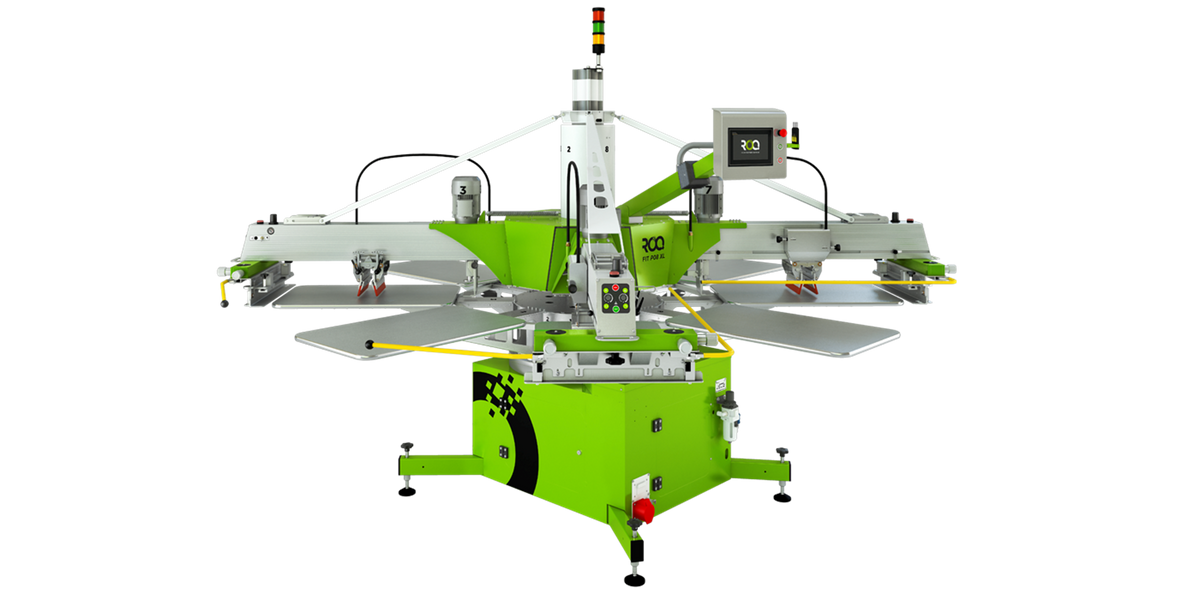

ROQ FIT Automatic Press

  • Operates with the Super Efficient & Quiet Geneva Ball Drive
  • 16x17" Print Area
  • Outputs Up To 400 Pieces per Hour with 1 Operator
  • ROQ Solid 3 Year Warranty Included
Press Overview:

The ROQ FIT is a versatile 4 Color 8 Station Single Operator Press that fits almost anywhere. Powered by the super quiet and efficient Geneva Ball Drive, it allows a single operator to produce 400 pieces per hour with a 16x17" print area and up to 4 colors. The Flash Unit can be positioned in the open spaces around the printheads, so you can use all 4 colors without compromise, offering maximum flexibility for 4 Color Process jobs.

Ideal for manual printers with limited space, the ROQ FIT helps you transition from backbreaking manual printing to a smarter, more efficient workflow. This press is not expandable, so if 4 colors seem limiting, consider starting your research with the ROQ YOU model and above.

Press Specifications:

- Number of Colors (max): 4

- Number of Pallets: 8

- Communication Ports: 2

- Total Height: 7.72'

- Minimum Width of Base: 2.67'

Press Print Area, Pallet & Frame Size:

- Maximum Print Size: 16.5" x 17"

- Maximum Frame Size: 23" x 31"

- Maximum Pallet Size: 17.7" x 27.6"

- Maximum Frame Profile Size: 2" x 2"

Press Production Speed:

- Maximum Production Speed: 400/hr

Press Diameter:

- Machine Diameter: 11.3'

Press Power Requirements:

- Maximum Consumption: 6A (3 Phase) or 11A (Single Phase).

ROQ Presses are uniquely pre-wired for both Single Phase and 3 Phase, allowing you to adjust the electrical phase internally if you move to a new location with different power requirements.

Press CFM Requirements:

- Air Compressed Consumption: 9 CFM

Questions?

Give us a call at 855.900.5888 or email us at: Hello@embellishr.com

FIT EVERYWHERE.

THE ROQ FIT

ROQ E Automatic Screen Printing Press
ROQ FIT Automatic Screen Printing Press
ROQ Tunnel Gas Dryer

COVERED SQUEEGEE TO SQUEEGEE.

ROQ Solid 3 Year Warranty

With ROQ.US’s exclusive 3-Year ROQ Solid Warranty, you can stay at the top of your game with total peace of mind. Designed to perform efficiently for hundreds of thousands to millions of prints, these machines ensure that if anything goes wrong, you won’t pay for parts, shipping, tech time, or the ROQ technician’s travel when needed.

ROQ FIT Automatic Screen Printing Press

SMALL BUT MIGHTY.

Maximize Your Space

Automate your screen printing with the ROQ FIT, a fast and compact press that's incredibly easy to learn and use.

Touch Screen for ROQ FIT P08 Automatic Screen Printing Press

JUST PRINT IT.

Supportive Production Press

With speeds of up to 400 pieces per hour, the ROQ FIT handles sleeves, tags, and simple prints, freeing up your main production presses for more complex jobs.

ROQ FIT P08 Automatic Screen Printing Press

THE CHOICE IS YOURS.

Full Color Utilization

The Flash Unit can be positioned in the open spaces around the printheads, allowing you to use all 4 colors without compromise. This setup offers maximum flexibility for 4 Color Process jobs.
