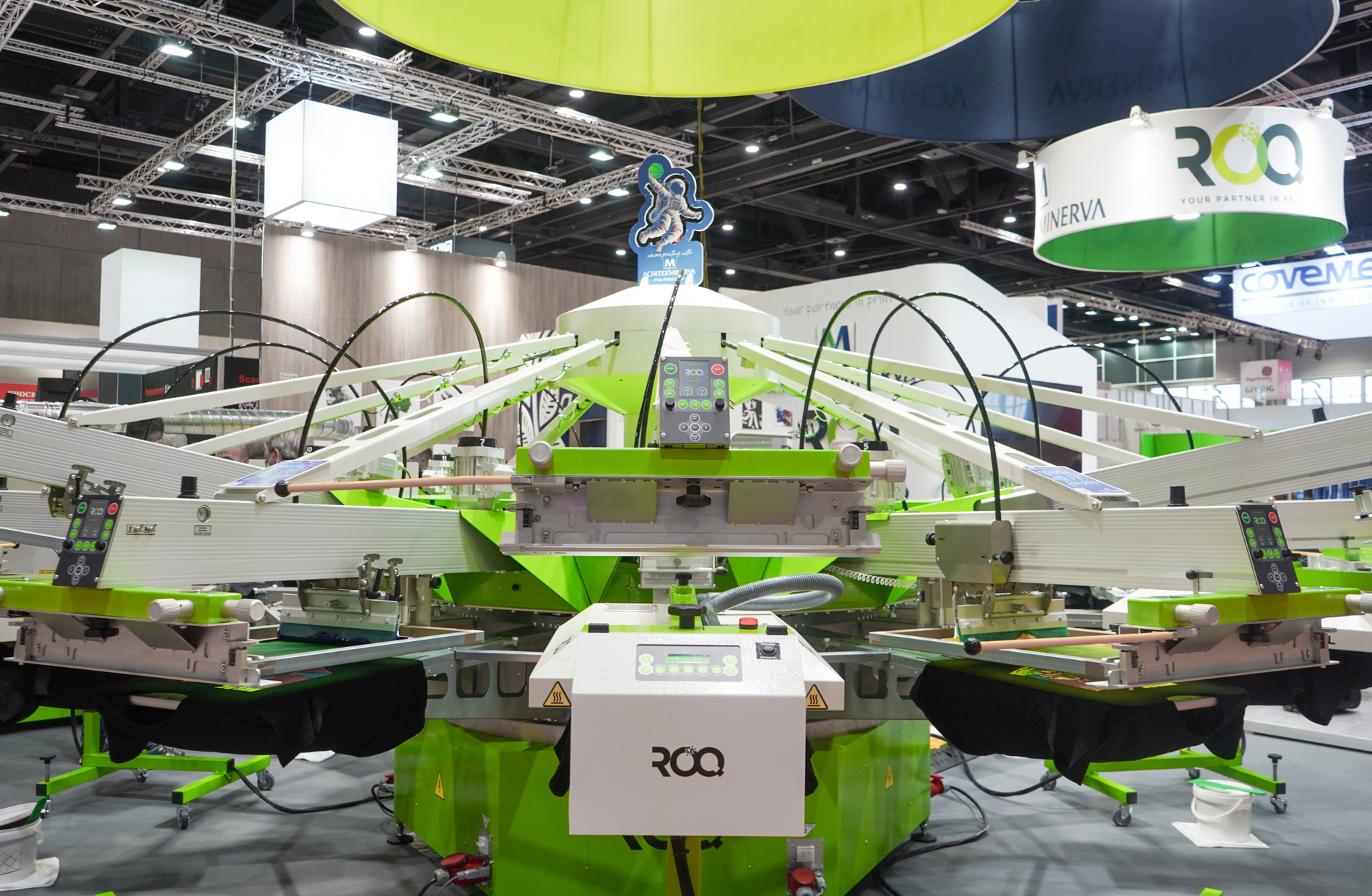

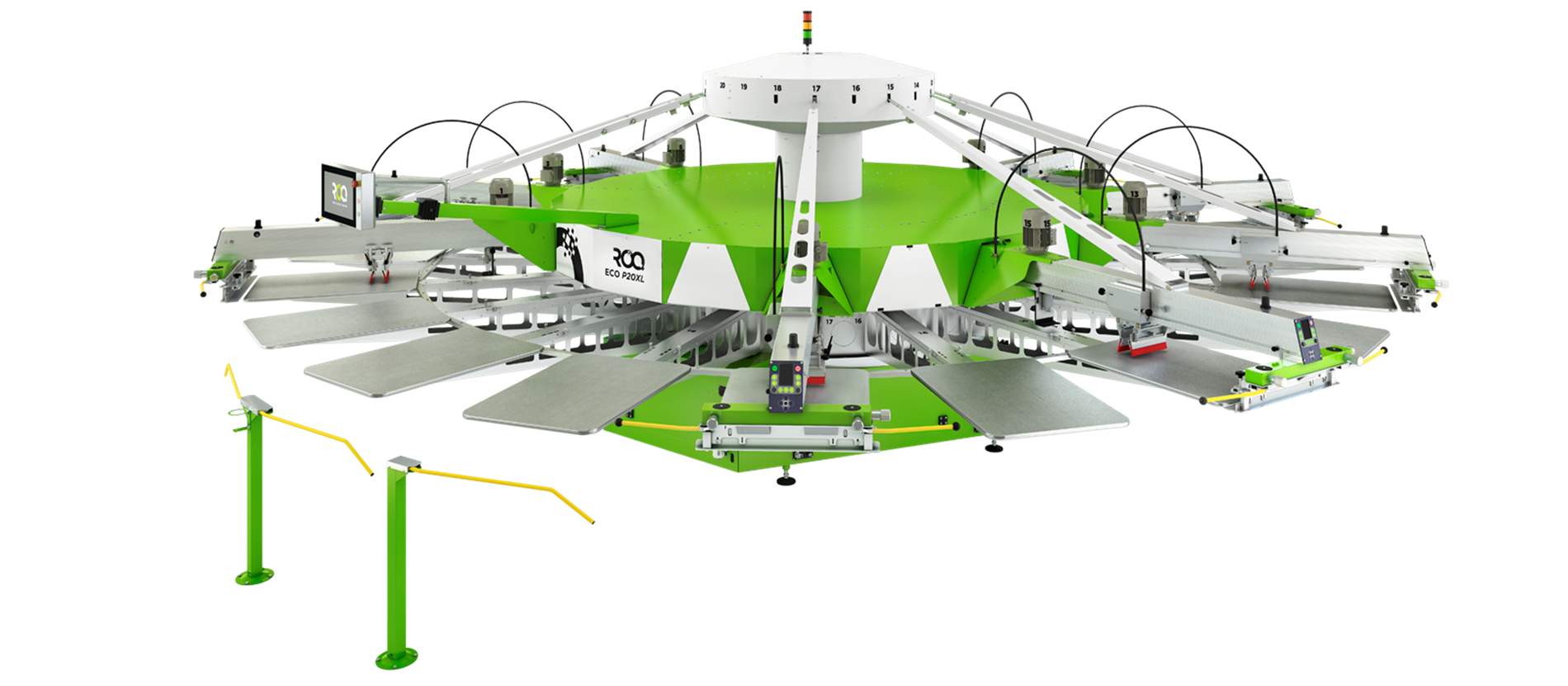

ROQ ECO Automatic Press
Press Overview:
Experience the Ultimate in Screen Print Automation with the ROQ ECO
The ROQ ECO stands at the pinnacle of screen print automation, where luxury, precision, and speed converge. Designed for those who demand the best, the ROQ ECO offers unparalleled features and performance. Each printhead is equipped with LCD monitors for digital registration and individual lift capabilities, while 'Fly Mode' accelerates all components by 25% faster than the ROQ NEXT.
This press ensures unmatched precision, quality, and the fastest output, doubling your revenue potential. The ROQ ECO is the ultimate choice for top-tier automation in screen printing. Elevate your operations with the finest press ROQ has to offer, combining luxury and efficiency for unparalleled performance.
Press Features:
- Aluminum Honeycomb Pallets: Durable and lightweight for optimal printing quality.

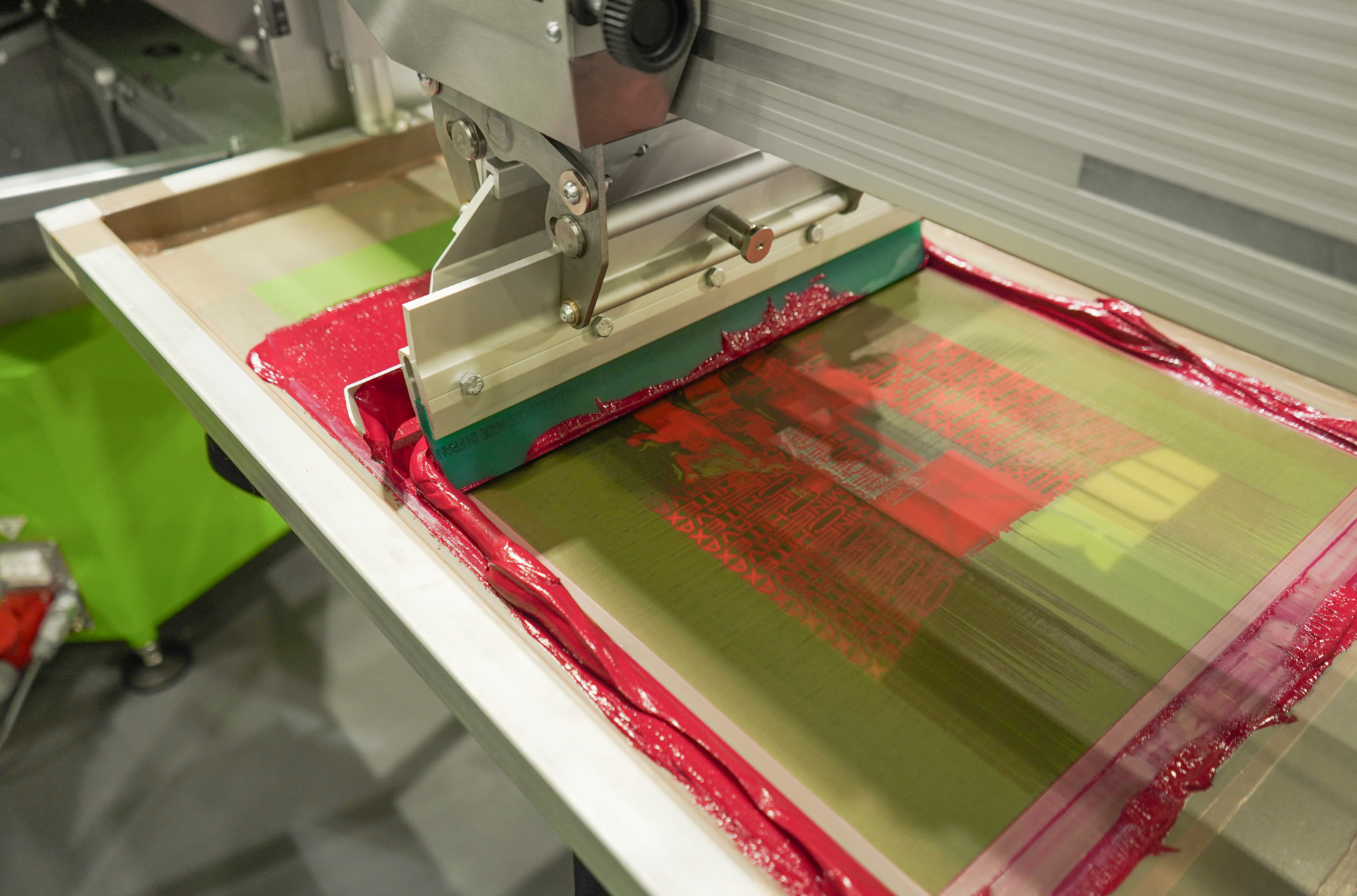

- Squeegee Movement with AC Frequency Drive: Ensures precise and consistent squeegee motion.
- Choice of Pneumatic Screen Holder: Offers flexibility with "U" clamp or pin system options.
- Independent Control Panel on All Printheads: Allows for precise adjustments and control.
- AC Servo-Motor with High Resolution Encoder: Controlled by frequency drive for accurate index system.

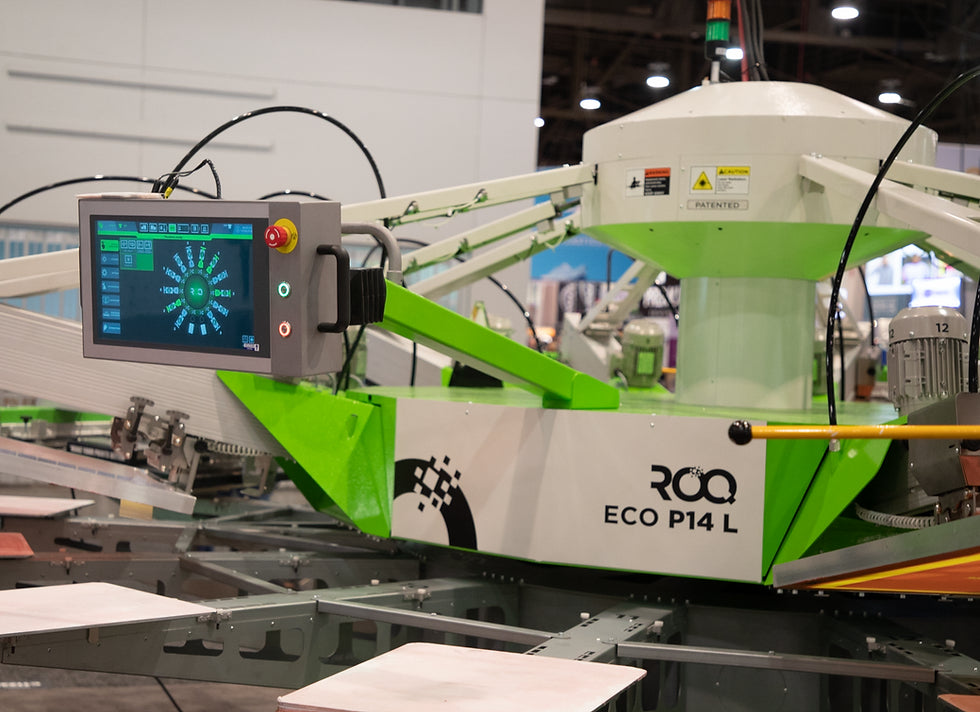

- Central Control Panel with Polychromatic LCD Touch Screen (15”): User-friendly interface for easy operation.
- Micro Registration Screen System with Vernier Scale: Ensures accurate alignment for perfect prints.
- Individual Controls: Manage print and flood speed, height, angle of the squeegees, and stroke length.
- Automatic Chain Lubrication: Reduces maintenance and extends machine life.
- Main Control on Each Printhead through HMI Panels: Enhances control and ease of use.
- Automatic Printhead Lifting for Cleaning Access: Simplifies maintenance and cleaning.
Experience the cutting-edge technology and superior performance of the ROQ ECO Press, designed to meet the demands of high-quality screen printing.
Press Specifications:
- Number of Colors (min): 8
- Number of Colors (max): 20
- Number of Pallets (min): 10
- Number of Pallets (max): 22
- Communication Ports: 3
- Minimum Width of Base: 5.5'
- ROQ Hybrid Digital Compatible: P18+
Press Print Area & Max Frame Size:
- Maximum Print Size: Varies by model - 16x20", 20x28", or 33x39" (Double Index)
- Maximum Frame Size: 25x36"+
Press Production Speed:
- Maximum Production Speed: 1,300/hr
Press Available Diameters:
- Diameter: 16.6' - 28.8'+ (depending on configuration)
Press Power Requirements:
- Maximum Consumption: 7 - 30 Amps (3 Phase) or 48 - 72 Amps (Single Phase), depending on configuration
ROQ Presses are uniquely pre-wired for both Single Phase and 3 Phase, allowing you to adjust the electrical phase internally if you move to a new location with different power requirements.
Press CFM Requirements:
- Air Compressed Consumption: 31 - 46 CFM (depending on configuration)
Questions?
Give us a call at855.900.5888 or email us at: Hello@embellishr.com
The Crème de la Crème
THE ROQ ECO
COVERED SQUEEGEE TO SQUEEGEE.
ROQ Solid 3 Year Warranty
With ROQ.US’s exclusive 3-Year ROQ Solid Warranty, you can stay at the top of your game with total peace of mind. Designed to perform efficiently for hundreds of thousands to millions of prints, these machines ensure that if anything goes wrong, you won’t pay for parts, shipping, tech time, or the ROQ technician’s travel when needed.
WHERE PROFITABILITY & EFFICIENCY MEET.

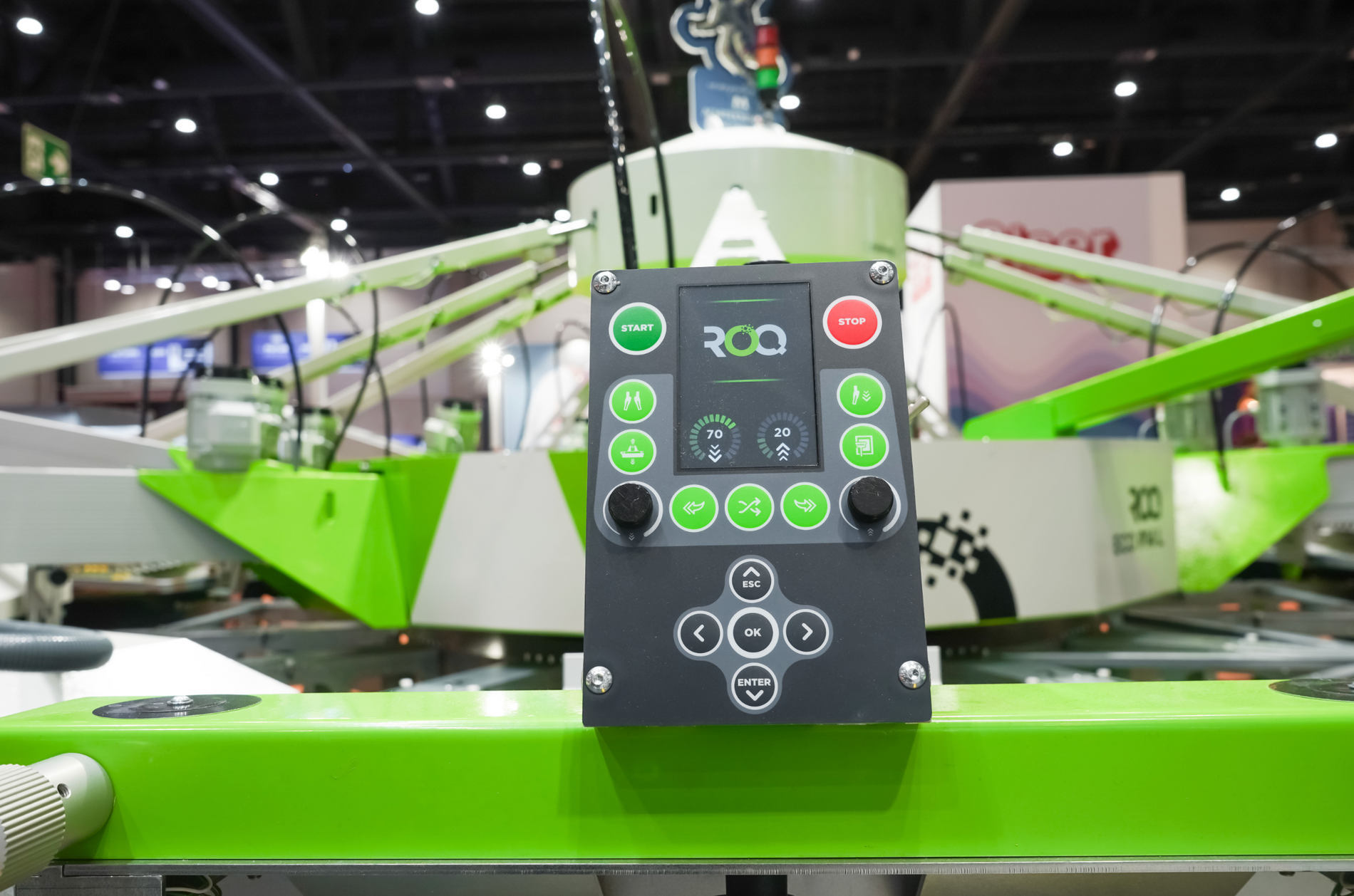

Precision Digital Registration
Advanced LCD Screens on every print head eliminate all guesswork from your workflow, ensuring precise registration every time.
JUST PRINT IT.
Engage Fly-Mode
Upgrade your ROQ ECO with Fly-Mode and boost your production from 1,300 to 1,400 pieces per hour with the touch of a button.
THE CHOICE IS YOURS.
Digital Ready
The ROQ ECO automatic press is fully compatible with the ROQ HYBRID Digital Printer, ensuring your setup is ready for future advancements.
GET THE GUIDANCE YOU NEED, WHEN YOU NEED IT.
Product Specialist Consultation
Not sure if this item is right for you? Our team of experts is here to help guide your decision. With firsthand experience working in or owning print shops, we truly understand your needs.
